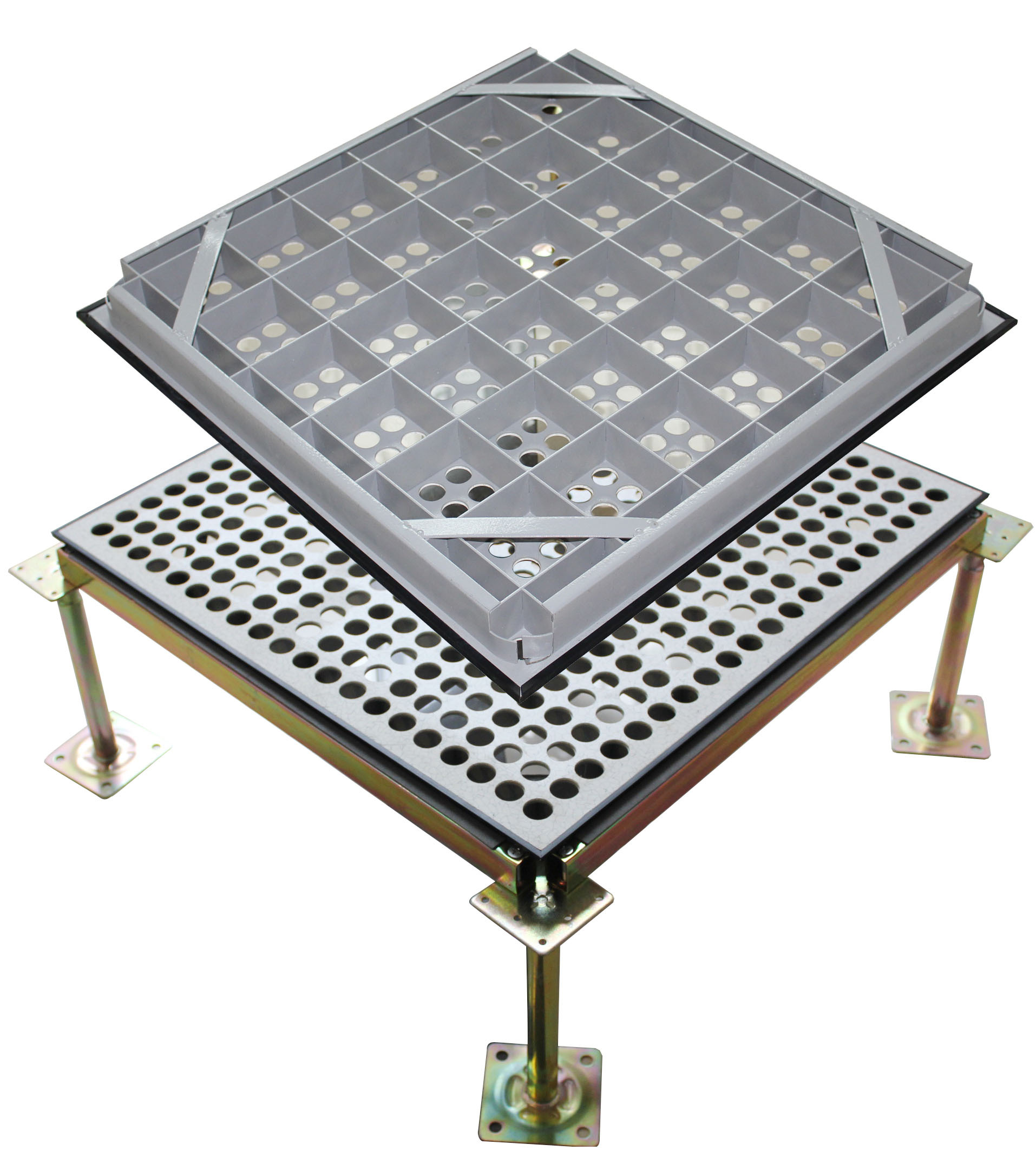

Name: 45% Ventilation Steel Air-flow Raised Floor
Brand: Changzhou SunYar International Inc
Availability: InStock
Rating: 5 (1 reviews)

Description

Functional Positioning for High-Demand Environments
This 45% Ventilation Steel Air-flow Raised Floor is engineered specifically for environments requiring enhanced underfloor airflow combined with structural strength. It primarily serves facilities such as data centers, server rooms, and electronic workshops where maintaining controlled temperature and static safety is essential. As an advanced raised floor solution, it targets system integrators and facility managers seeking reliable raised access flooring manufacturers’ products that support complex air conditioning layouts while ensuring safety compliance. Adjustable pedestals accommodate varied installation heights, optimizing workflow integration for maintenance and upgrades.

Technical Specifications and Structural Performance
Constructed from high-grade steel, this raised metal floor panel delivers exceptional load-bearing capacity with uniform loads ranging from 12,500 to 46,000 N/m² depending on the model. The strategically engineered 45% open area maximizes ventilation beneath the floor surface, facilitating efficient air circulation for equipment cooling. The system incorporates antistatic surface treatment and fire-resistant materials to meet stringent environmental controls. Impact loads are rated up to 1,340 N while ultimate load capacity reaches 26,700 N, ensuring durability under demanding conditions. This precision in mechanical performance makes it a technically superior access floor solution.

Industry Applications and Operational Value
Deployed extensively in computer room raised floor settings, the steel ventilation panels enable critical airflow management to prevent overheating and extend hardware lifespan. Their use in data center infrastructure supports optimized HVAC configurations, reducing energy consumption and operational costs. Additionally, adaptability to cleanrooms and monitoring centers underlines their versatility in environments requiring dust control and antistatic features. These panels contribute long-term value by combining sustainability—through recyclable materials—and consistent serviceability tailored to professional IT and electronic industry requirements.

Product Advantages

Design and System Integration Benefits
The product’s modular steel panel design benefits from precise dimensional standards, facilitating seamless integration with standard pedestal and stringer systems typical of raised access floors. The 45% ventilation open area is calibrated to balance airflow with structural integrity, providing a design solution that accommodates heavy loading while enabling airflow essential in cooling systems. Adjustable pedestals enhance installation flexibility across different project specifications, further underscoring its suitability as a dependable raised floor solution. Its compatibility with established infrastructure reduces installation time and cost while maintaining compliance with safety standards.

Enhanced Performance and Operational Usability
This product excels in offering high-impact resistance and antistatic functionality, vital for preserving sensitive electronic equipment integrity found in computer room raised floor environments. Its flat, shockproof surface supports stable equipment placement and safe operational workflows. The steel construction ensures longevity and ease of maintenance, decreasing lifecycle costs for facility operators. Furthermore, the ventilation rate contributes to more efficient ground air conditioning systems, enhancing cooling efficacy and lowering energy expenditures, thus delivering measurable ROI for users.

Characteristic

Ideal solution to ground air conditioning system

Various ventilation rate from 15% to 65% to meet different requirement to cabinet cooling

Antistatic, fireproof, high loading capacity, flatness and shockproof

Adjustable height of pedestal, assembly agility, large wire and good exchangeability

Recyclable, convenient removing, cost saving, long performance life

Application

All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning

Technical Specification

Model	Concentrated load (N)	Impact load (N)	Ultimate load (N)	Uniform Load (N/m2)	Rolling load (N)
Model	Concentrated load (N)	Impact load (N)	Ultimate load (N)	Uniform Load (N/m2)	10 times	10000 times
FS662	≥3000	≥445	≥9000	≥12500	2946	2356
FS800	≥3600	≥536	≥10800	≥16100	3560	2670
FS1000	≥4500	≥670	≥13500	≥23000	4450	3560
FS1250	≥5600	≥780	≥16800	≥33000	5560	4450
FS1500	≥6700	≥1005	≥20100	≥34500	6675	5340
FS2000	≥8900	≥1340	≥26700	≥46000	8900	7120

Use Scenarios

Critical Role in Data Center Cooling Management
In modern data centers, maintaining optimal environmental conditions is imperative for reliable server operation. The 45% Ventilation Steel Air-flow Raised Floor acts as an integral component of underfloor air distribution systems, promoting efficient cooling and air circulation to avoid hotspots. Its robust load capacity supports heavy racks and infrastructure while providing antistatic properties essential for electronic safety. This solution facilitates compliance with industry standards for electrical grounding and fire resistance. Integration with sophisticated HVAC systems streamlines airflow management, reducing cooling system strains and enhancing facility uptime.

Functionality in Electronic Workshops and Cleanroom Environments
In electronic manufacturing and cleanroom applications, controlling dust and static electricity is critical to product quality and equipment safety. This ventilated steel raised floor provides an environment that balances effective airflow with static dissipation, significantly lowering contamination risk. Its fire-resistant and durable surface meets rigorous safety protocols demanded in these sensitive industrial settings. Adjustable installation heights accommodate varying subfloor requirements, allowing seamless workflow integration with monitoring and production systems. This makes it an essential element within comprehensive raised access flooring strategies tailored for precision-driven industries.

FAQ

What materials are used in the 45% Ventilation Steel Air-flow Raised Floor?
This raised floor system features high-grade steel construction, providing robust load capacity and fire resistance. The use of steel guarantees durability, impact resistance, and an antistatic surface, essential for professional environments like computer rooms and server centers requiring raised access flooring manufacturers standards.

Can I customize the height and installation of this raised floor?
Yes, the floor panels incorporate adjustable pedestals allowing for flexible height settings during installation. This adaptability ensures easy integration with existing infrastructure and airflow requirements, streamlining the assembly process for efficient access and maintenance in raised floor solutions projects.

How does this floor design support cooling and ventilation needs?
With a 45% ventilation open area, this access floor maximizes airflow beneath the floor panels. The design facilitates optimal cooling for equipment-heavy spaces such as data centers and network rooms, ensuring efficient ground air conditioning and protection against overheating sensitive electronics.

What maintenance considerations are there for this steel raised floor?
The steel panels offer long service life with minimal maintenance, thanks to their resistance to impact, fire, and static. Regular cleaning to remove dust and debris ensures continuous ventilation efficiency, supporting critical environments like cleanrooms and electronic workshops where reliable raised access floors are crucial.
