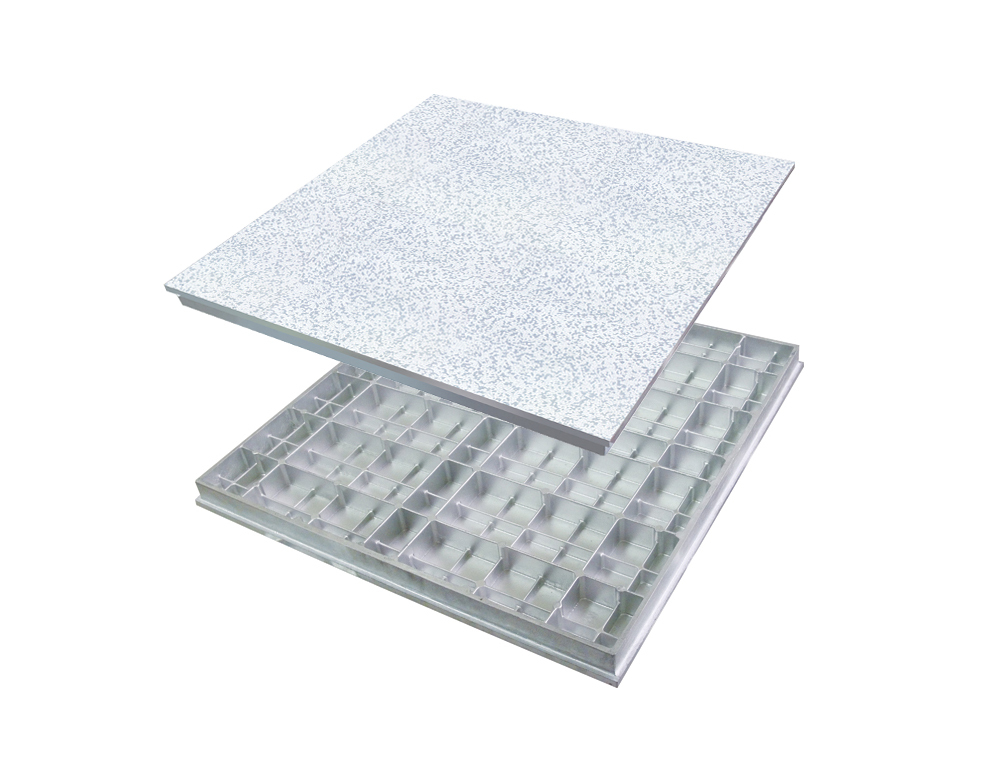

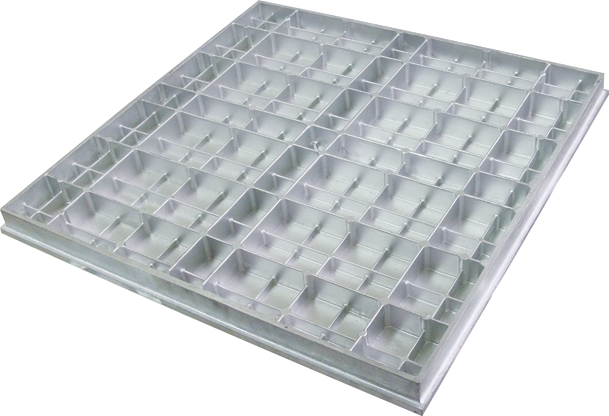

Aluminum access floor is die-casting with aluminum ingot which is light and anticorrosion. The best base material of the raised floor, 100% recycled. It's the industry standard for clean environment applications. This system is the perfect solution for processing areas and manufacturing areas. Machined to extremely close tolerances, these panels are completely interchangeable and provide a precision fit throughout your floor system. The Aluminum Raised Access Floor Systems are precise yet flexible. They are easily installed, offering many design options.
Optimized Flooring for High-Demand IT Environments
Designed specifically for IT infrastructure specialists and facility managers, this solution addresses the critical need for static dissipation and contamination control in sensitive operational zones. The system serves industries requiring reliable environmental control such as data centers, server farms, and communication hubs. As a leading option among raised floor solutions, it supports integration into complex installations where maintaining equipment integrity and ensuring efficient access for networking updates is essential, positioning itself as a vital component in scalable server room raised floor configurations.
Precision Engineering and Measurable Performance Metrics
Constructed from die-cast aluminum panels, this raised access flooring system ensures lightweight yet highly durable composition resistant to corrosion and magnetic interference. It achieves a Class A fire rating and delivers load capacities reaching up to 4500 kg/m2 depending on panel thickness and design variant. The product maintains continuous antistatic conductivity via conductive gaskets and provides customizable open area percentages up to 55% to facilitate airflow, critical for thermal management in access flooring applications. Panel interchangeability minimizes downtime during maintenance and reconfiguration, ensuring operational continuity in demanding environments.
Technical Integration and Operational Value in Data Facilities
This solution is extensively deployed in modern data centers and IT server rooms where underfloor HVAC, cable management, and static control are paramount. It supports efficient workflows by enabling quick and safe access to cables and infrastructure beneath the floor surface, aligning with rigorous operational standards. By limiting electromagnetic interference via non-ferrous materials, it safeguards sensitive electronics found within server room flooring layouts. Its modular design is suited for both initial installations and retrofit projects, enhancing the flexibility and long-term value of raised floor solutions in enterprise-grade settings.
Product Advantages
Structural and System Design Benefits
The architectural design of the Antistatic Aluminum Raised Access Floor emphasizes modularity and integration with established data center infrastructures. It offers fully interchangeable panels sized at 600×600 mm with varying thicknesses tailored to load requirements. This adaptability supports custom configurations of open area for airflow modulation, enhancing environmental control. The use of conductive gaskets establishes continuous grounding pathways, essential in raised floor solutions. As a recognized leader among raised access floor manufacturers, this system delivers streamlined installation processes with minimal disruption, facilitating maintenance and scalable expansions in critical IT facilities.
Enhanced Performance and Operational Usability
From a performance standpoint, the system guarantees static dissipation and fire resistance, crucial for protecting sensitive electronic assets within raised computer room floors. User benefits include ease of access to underfloor spaces for maintenance or upgrades, supporting uptime objectives. Lightweight aluminum construction contributes to ergonomic installation while providing long-term corrosion resistance. The availability of robust finishes like epoxy powder coatings and high-pressure laminates adds to surface durability under heavy traffic and equipment weight. Altogether, these features culminate in an efficient, reliable flooring system optimized for today's demanding server room raised floor environments.
Characteristic
All panels are fully interchangeable
Die cast aluminum panels meet class A fire rating
Contains no ferrous materials to disrupt magnetic fields
Conductive gasket ensures continuous conductivity
Light and high loading capacity high dimensional precision, easy-to-install

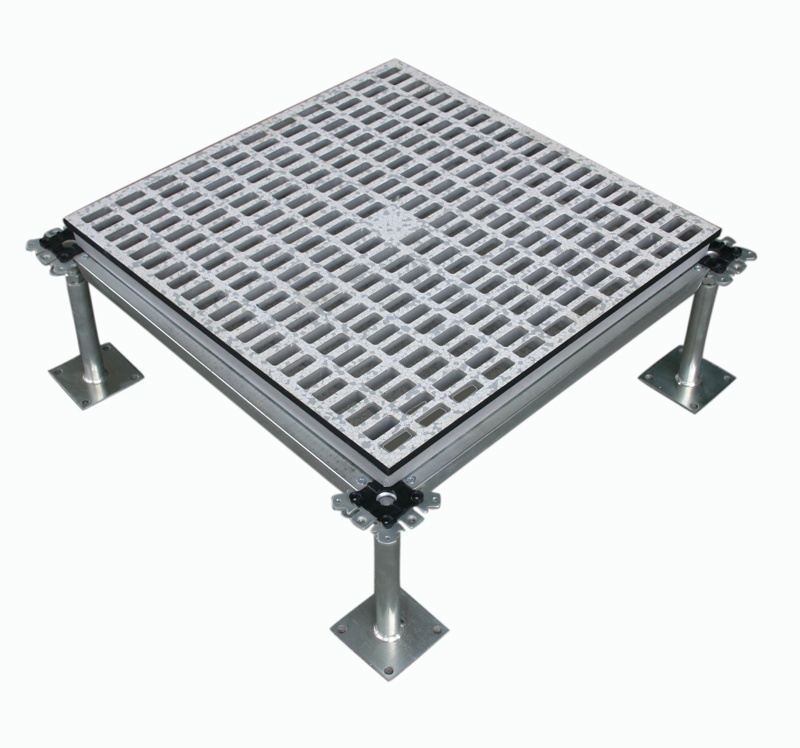

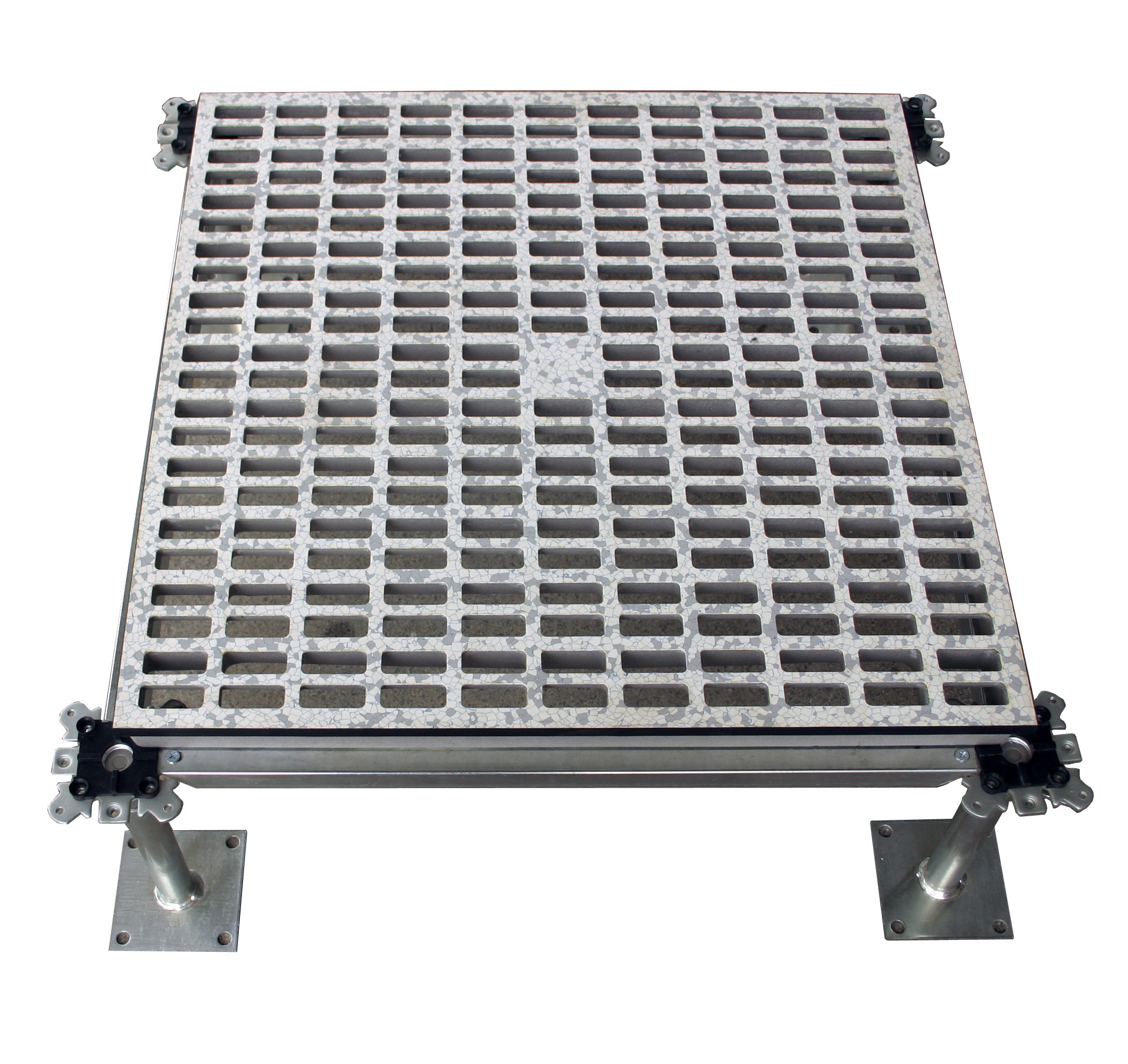

Perforated panels and grates provide a variety of open area percentages

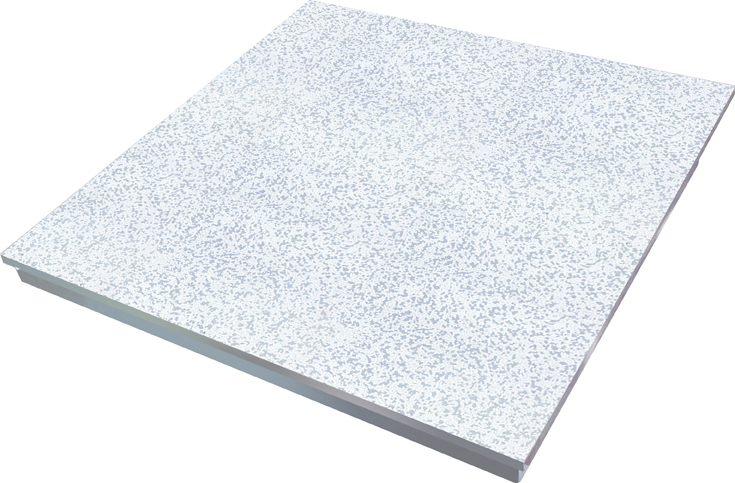

Panel finish: bare, epoxy powder coat, metallic finishes, HPL/PVC, excellent antistatic
Air-flow panels suitable 15%-55% ventilation
Convenient removing, long performance life
Technical Specification
|
Model |
Concentrated load (kgf) |
Ultimate load (kgf) |
Uniform load (kgf/m2) |
Open ratio |
|
AL300 |
≥300 |
≥600 |
≥1000 |
0%, 50% |
|
AL500 |
≥500 |
≥1000 |
≥1500 |
0%, 17%, 25% |
|
AL700 |
≥700 |
≥1400 |
≥2100 |
0%, 17%, 25% |
|
AL800 |
≥800 |
≥1600 |
≥2400 |
0%, 17%, 25% |
|
AL1000 |
≥1000 |
≥2000 |
≥3000 |
0%, 17%, 25%, 50% |
|
AL1200 |
≥1200 |
≥2400 |
≥3600 |
0%, 17%, 25% |
|
AL1500 |
≥1500 |
≥3000 |
≥4500 |
0%, 17%, 25%, 50% |
Size: 600*600*40mm, 600*600*50mm, 600*600*55mm
Use Scenarios
Integration in Data Center Expansion and Retrofit Projects
In complex IT operations, data centers often require phased expansions or retrofits to accommodate evolving hardware demands. The Antistatic Aluminum Raised Access Floor serves this sector by offering modular panels that simplify installation over existing substrates, minimizing downtime. Its high load capacity and Class A fire rating ensure compliance with server room safety standards while conductive properties protect against static buildup. This solution facilitates underfloor cable reorganization and HVAC enhancements critical in server room flooring maintenance and expansion, seamlessly integrating with existing raised access infrastructure to improve operational flexibility.
Application in Static-Sensitive Clean Room Environments
Clean room environments housing sensitive manufacturing or laboratory equipment depend on reliable static control to prevent contamination and equipment failure. The system’s antistatic properties and non-ferrous aluminum construction reduce electromagnetic interference, thereby ensuring stable operational conditions. Its customizable open area design supports precise airflow regulation aligned with clean room standards. The ease of panel interchangeability supports strict maintenance protocols and quick access to subfloor utilities. As a proven option among raised floor solutions, it caters specifically to environments demanding both static control and optimized airflow, enhancing facility reliability and compliance.
What materials are used in your antistatic aluminum raised access floor panels?
We manufacture our raised access floor panels from die-cast aluminum, valued for its lightweight strength and corrosion resistance. To ensure continuous antistatic performance, the system includes conductive gaskets that provide consistent grounding, making it ideal for sensitive environments like server room raised floor installations.
Can I customize the finishes and open-area options on the raised floor panels?
Yes, our raised floor solutions offer customizable finishes including bare aluminum, epoxy powder coat, metallic finishes, and overlays such as HPL and PVC. You can also select open-area ratios from 0% up to 55%, allowing optimized airflow to meet your specific server room flooring and facility needs.
How do you support installation and maintenance for raised computer room floors?
Our raised computer room floors feature fully interchangeable modular panels designed for quick installation and easy removal. This modularity enables efficient access to underfloor cabling and HVAC systems, minimizing downtime during maintenance or reconfiguration in dynamic IT infrastructure environments.
What lead times should I expect for large orders of access flooring?
Lead times for our access flooring depend on order volume and customization requirements. Thanks to our advanced manufacturing capacity, we maintain efficient production schedules. For precise delivery estimates regarding your server room raised floor or other raised floor solutions, please consult our sales team directly.
