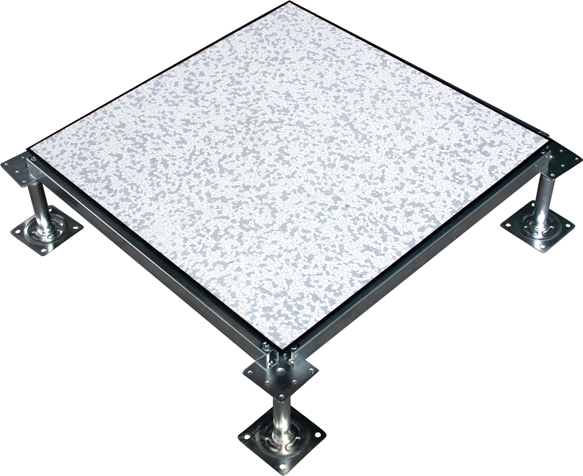

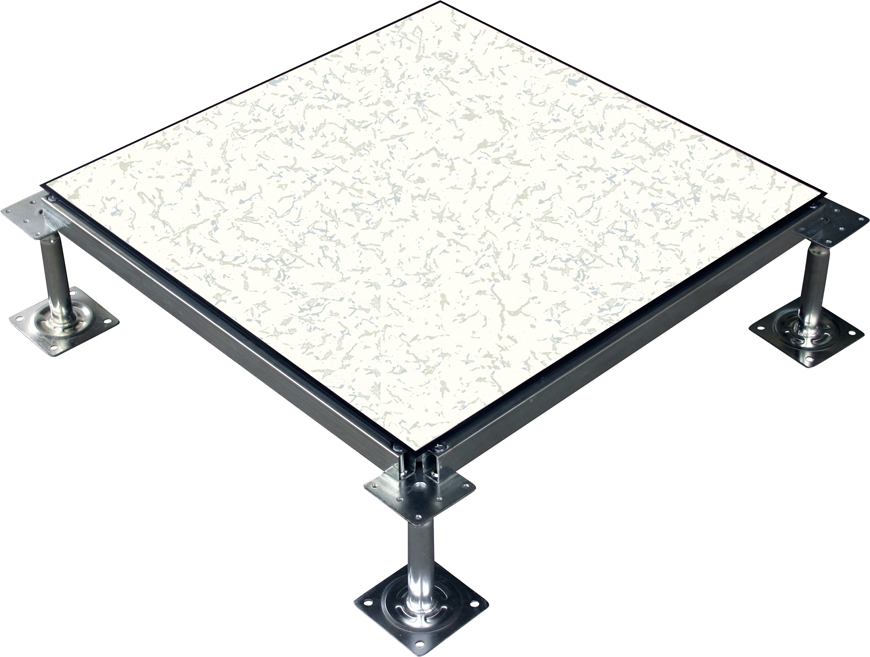

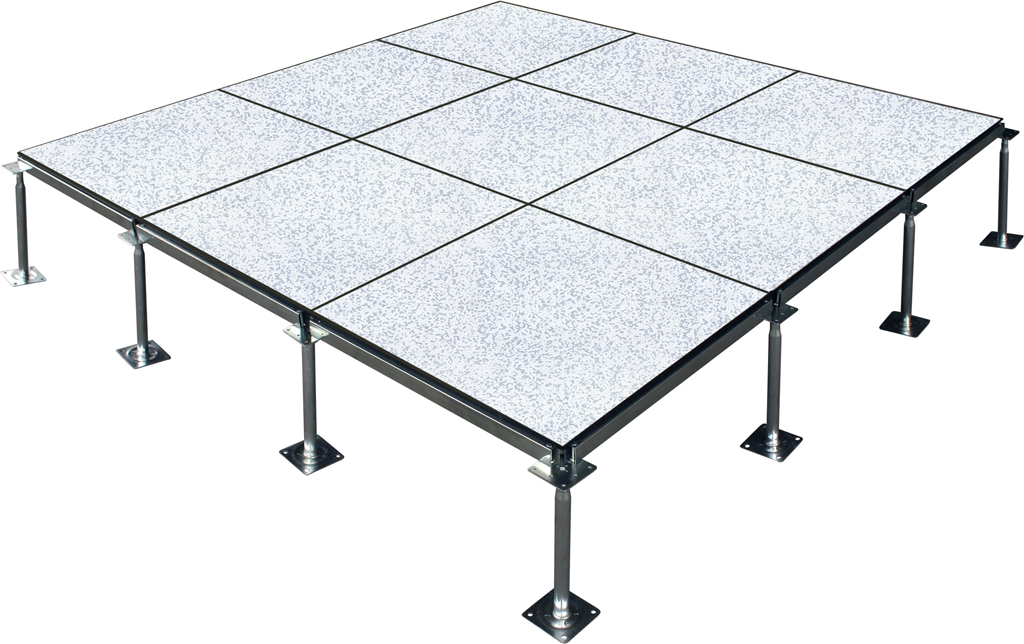

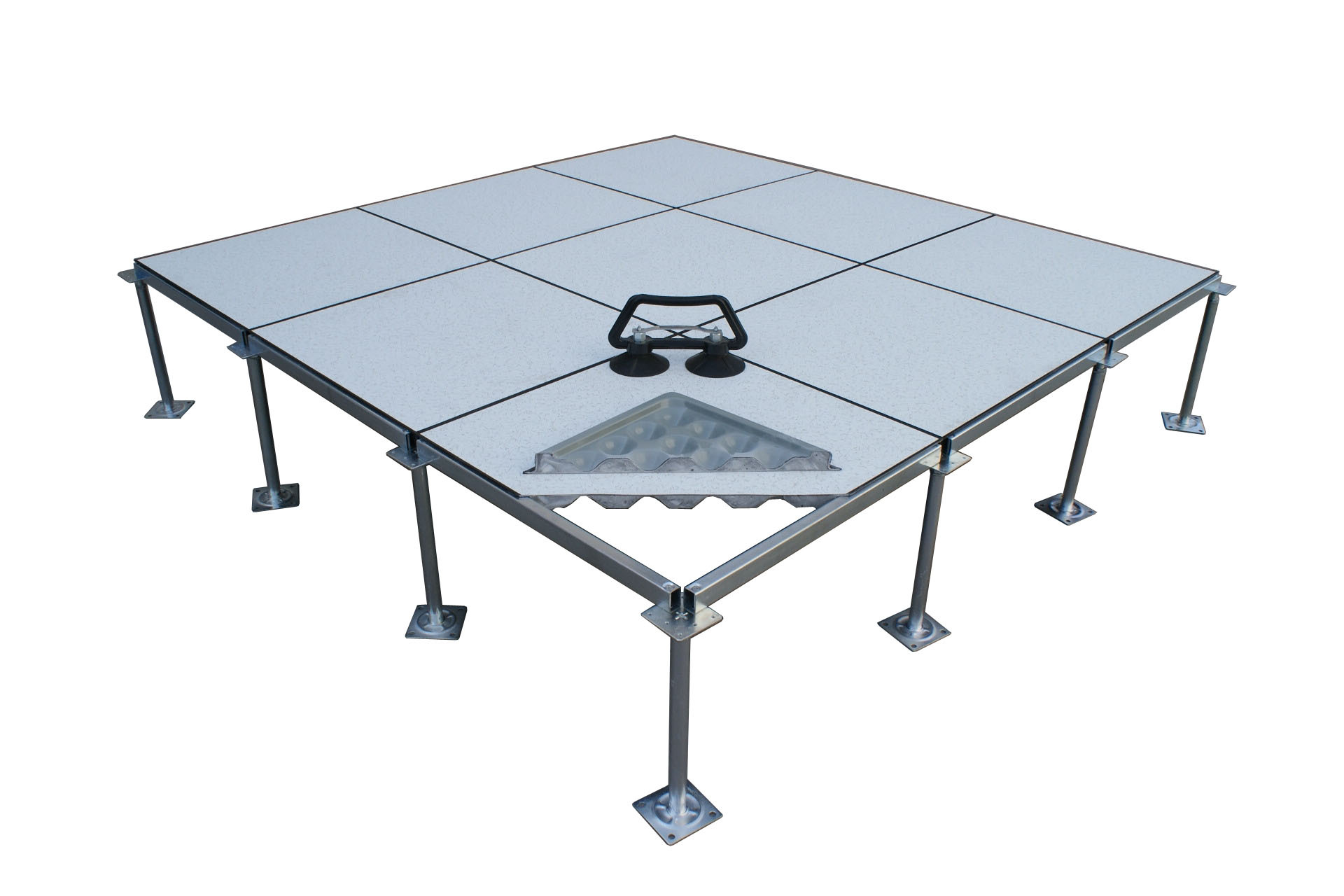

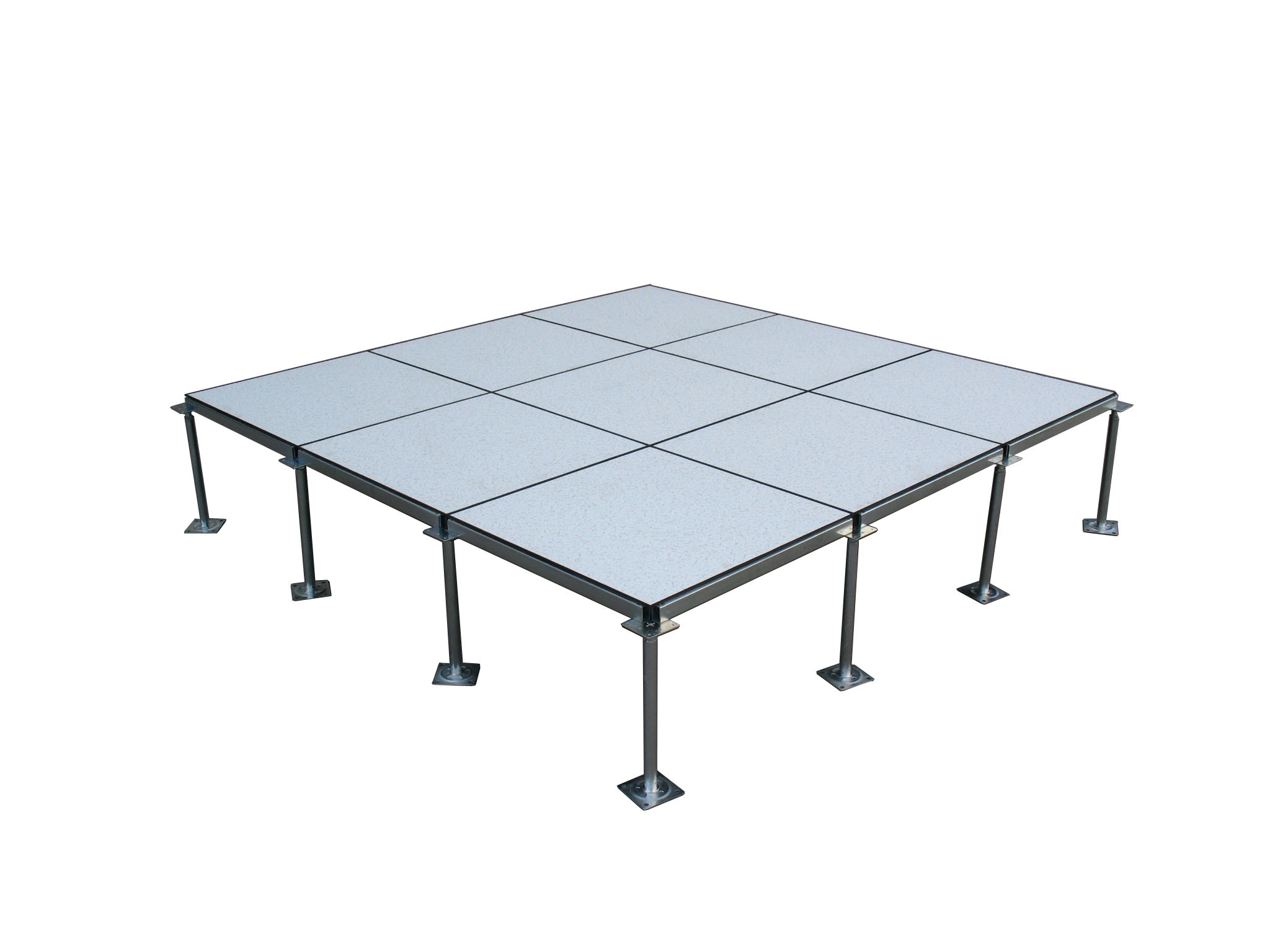

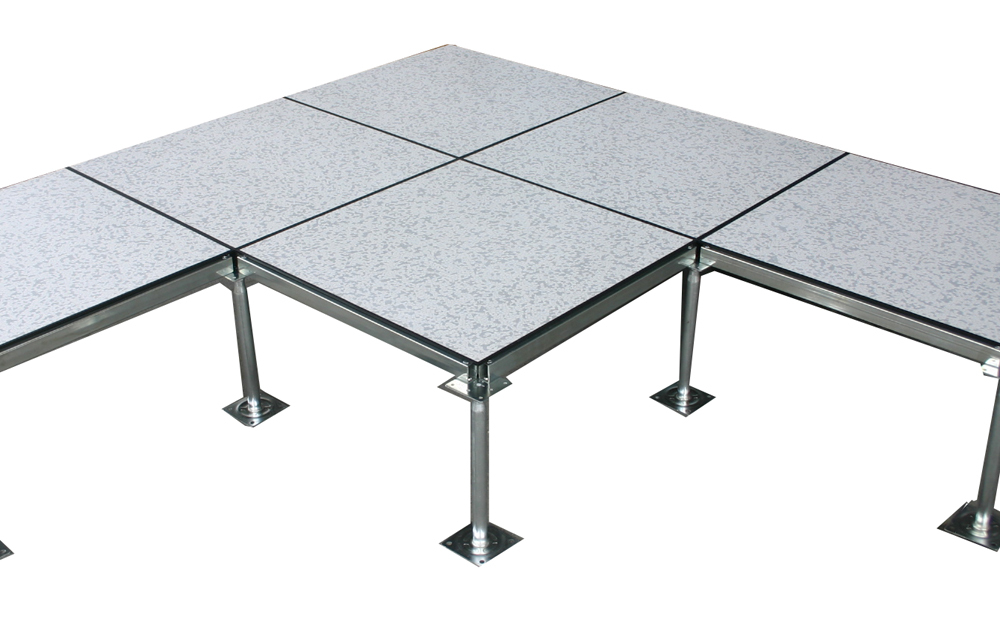

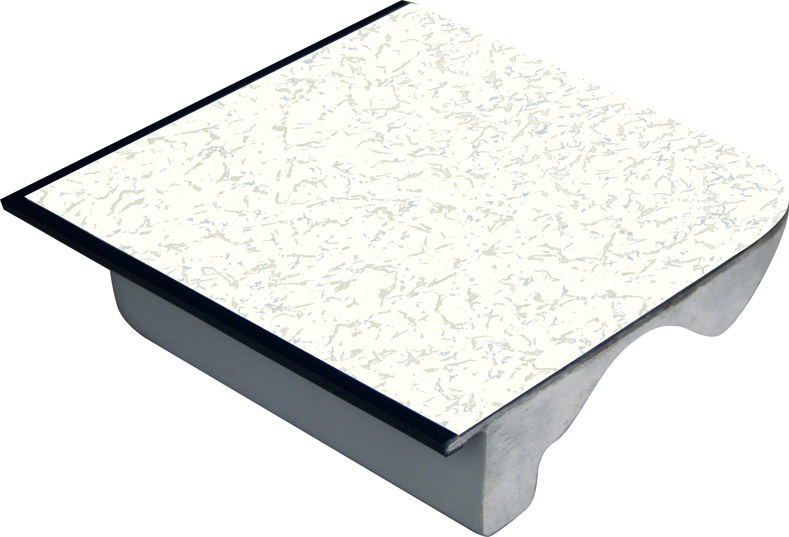

The raised access floor system is composed of floor, stringer and supports, supplying high load & antistatic working surface and room for laying all kinds of wires at lower place. It is permitted to install wiring box and ground plug on the floor. Wires can be placed under the floor and height of support can be adjusted at will. Connect the stringer and pedestal which height can be adjusted into a firm upper support system. Insert floor into panes which are enclosed by stringers.
Characteristic
Elegant appearance for various top tiles
Antistatic, fireproof, high loading capacity, flatness and shockproof
Adjustable height of pedestal, assembly agility, large wire and good exchangeability
Agreeable solution to ground air conditioning system
Recyclable, convenient removing, cost saving, long performance life
Flat top steel pedestal, height could be 70mm~1500mm, square tube stringer, connect the pedestal and panel, make a steady and high loading system.
Application
All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning.
Technical Specification
Model |
Concentrated load (N) |
Impact load (N) |
Ultimate load (N) |
Uniform Load (N/m2) |
Rolling load(N) |
|
10 times |
10000 times |
|||||
FS662 |
≥3000 |
≥445 |
≥9000 |
≥12500 |
2946 |
2356 |
FS800 |
≥3600 |
≥536 |
≥10800 |
≥16100 |
3560 |
2670 |
FS1000 |
≥4500 |
≥670 |
≥13500 |
≥23000 |
4450 |
3560 |
FS1250 |
≥5600 |
≥780 |
≥16800 |
≥33000 |
5560 |
4450 |
FS1500 |
≥6700 |
≥1005 |
≥20100 |
≥34500 |
6675 |
5340 |
FS2000 |
≥8900 |
≥1340 |
≥26700 |
≥46000 |
8900 |
7120 |
Size: 600*600*35mm, 610*610*35mm
