Characteristic
Light weight, sound proof
Reaction to fire class Bf1-s1
Flexible and convenient for wiring
Elegant appearance for various top tiles
Application
All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning

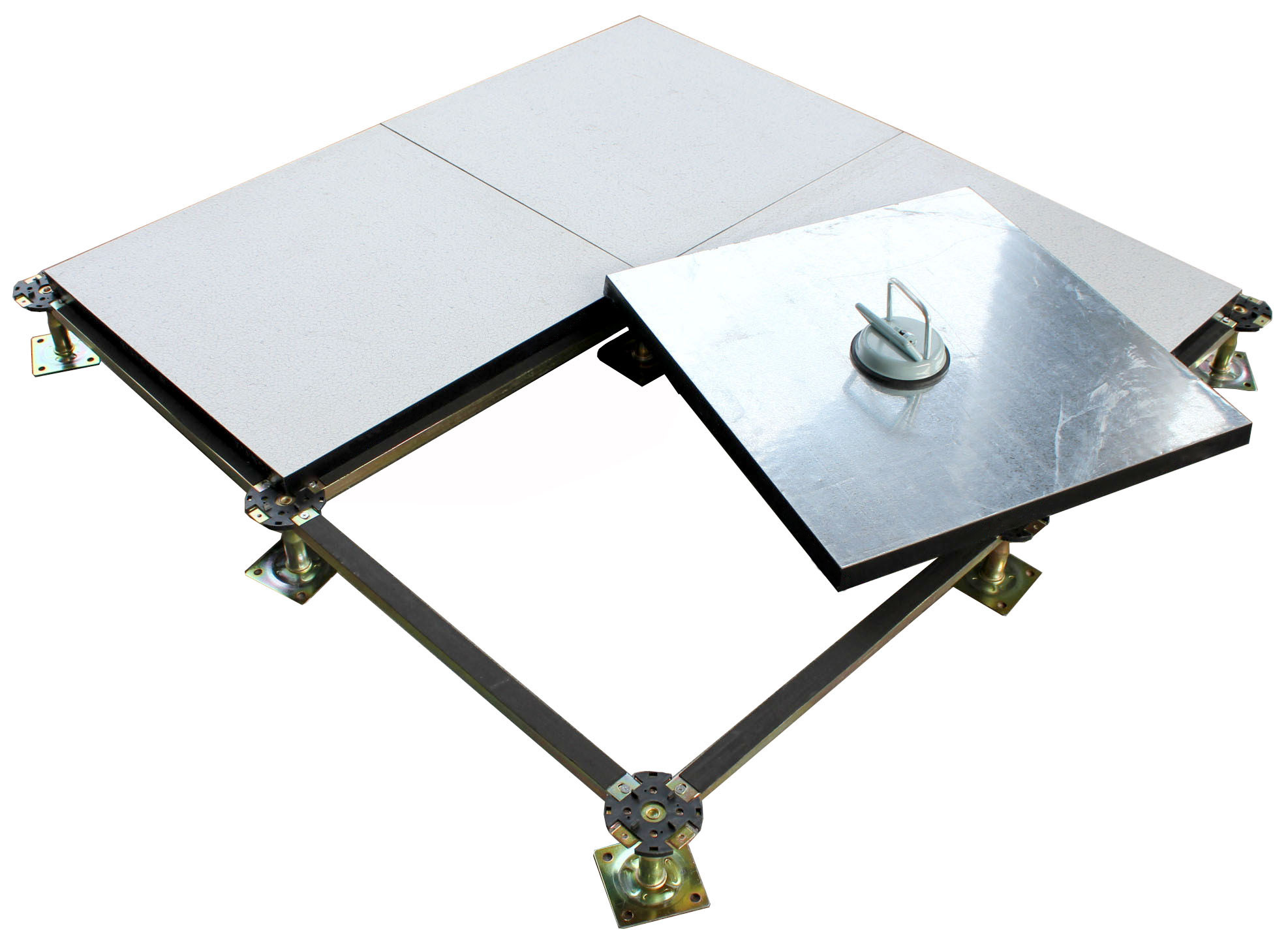

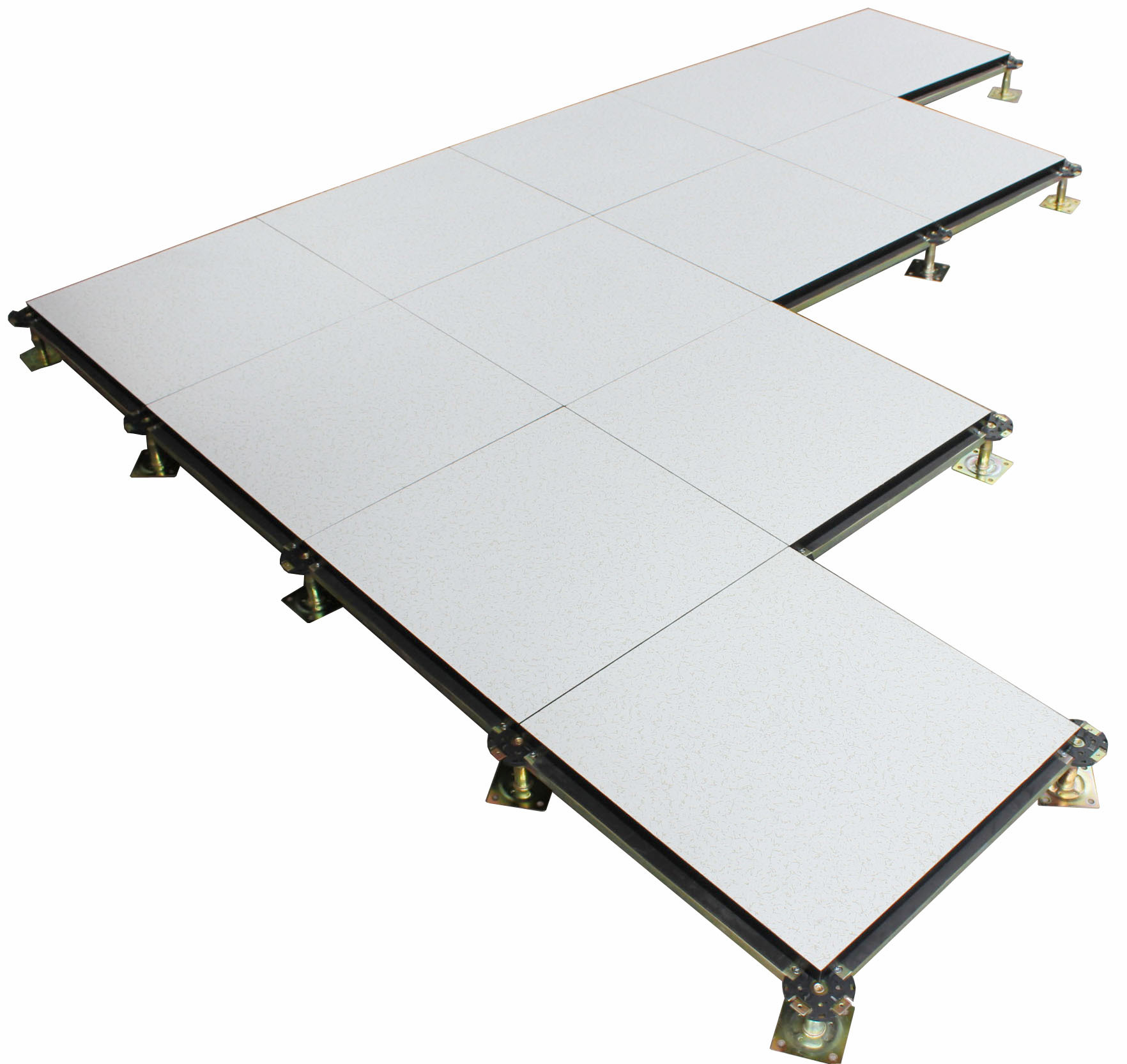

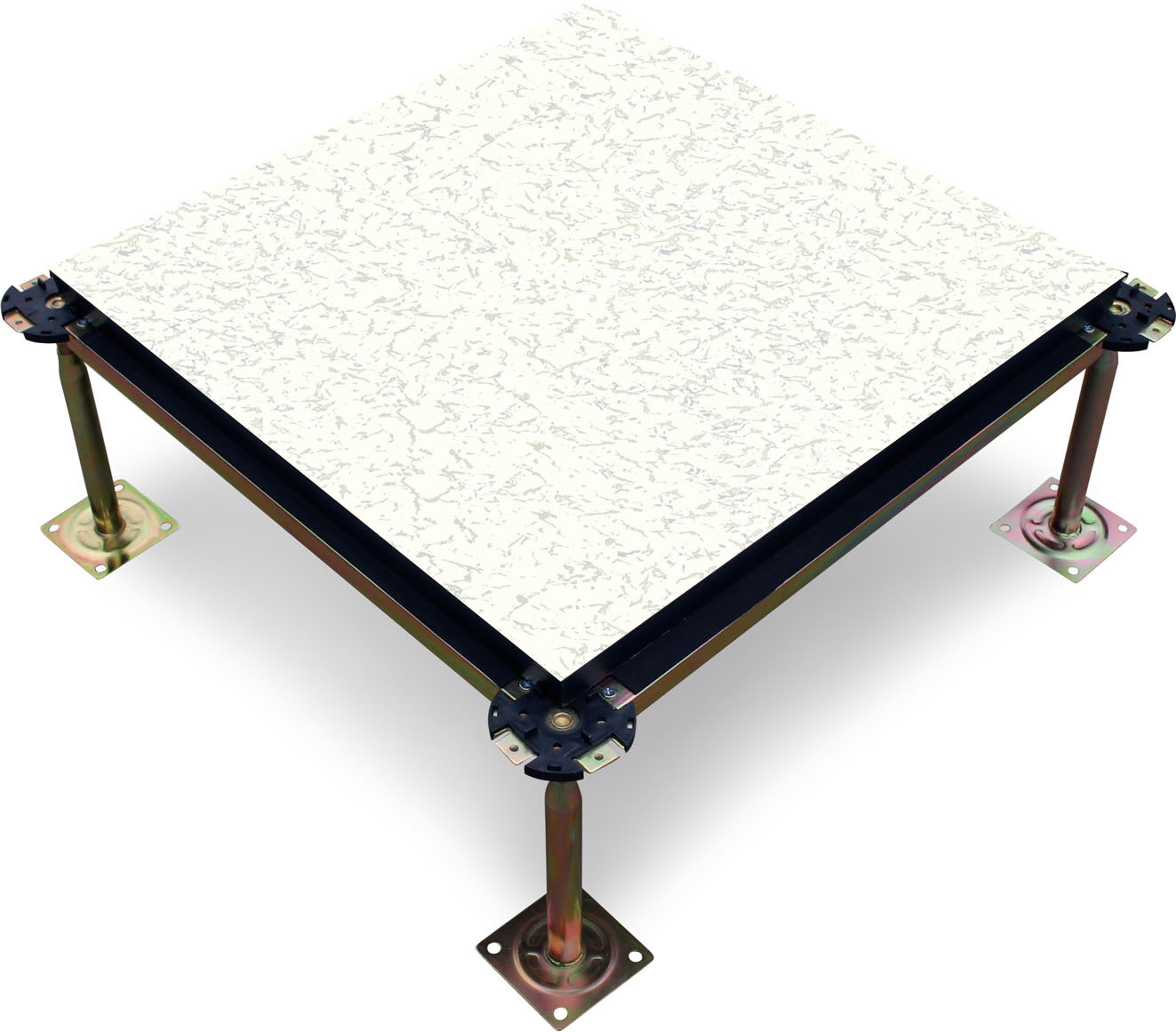

Structure

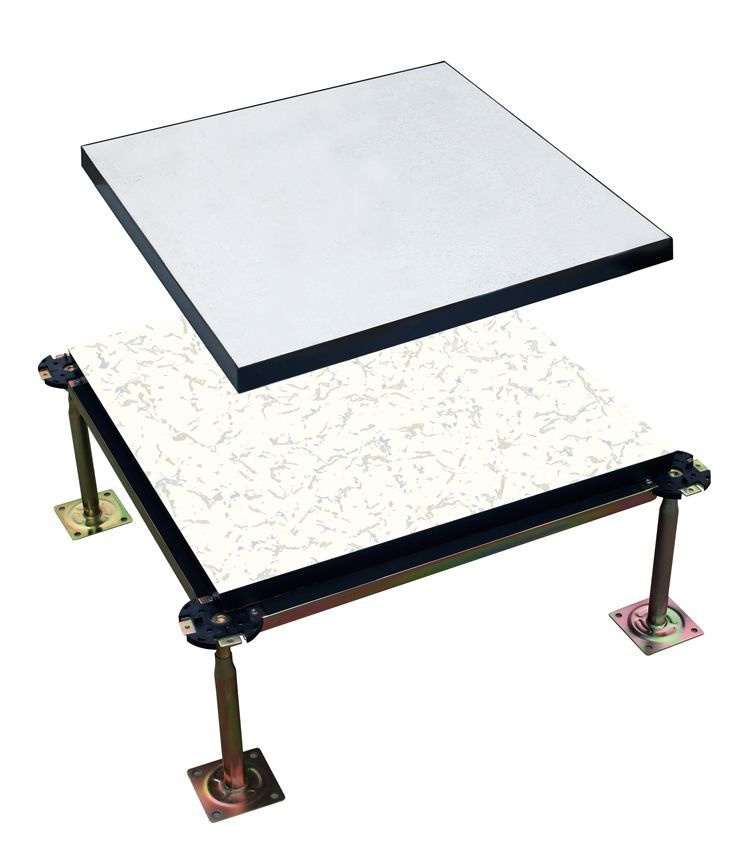

30/38mm high density chipboard core with galvanized steel reinforcement
Four sizes PVC trim sealed
HPL, PVC, Steel and other typical covering

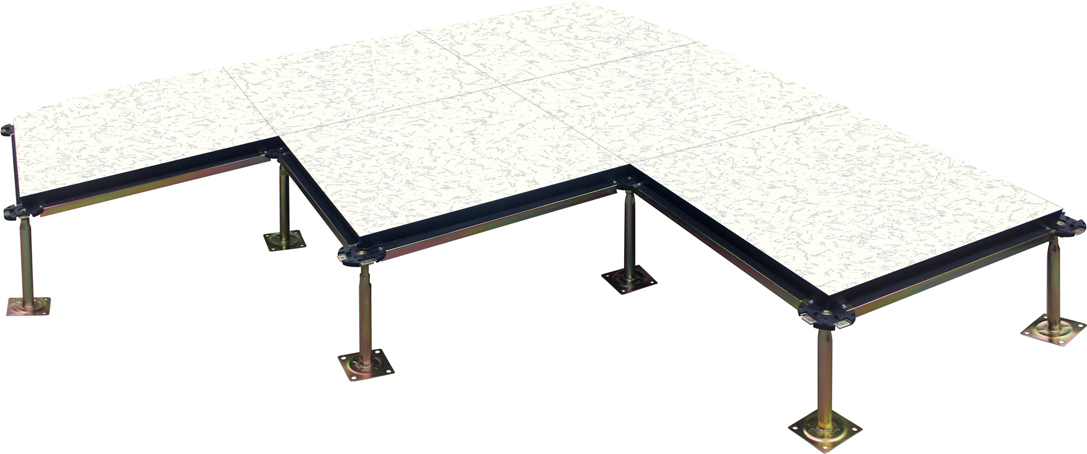

Die casting steel structure pedestal, plastic gasket on top, height could be 70-1500mm, with or no square tube stringer
Technical Specification
Model |
Concentrated load (N) |
Impact load (N) |
Ultimate load (N) |
Uniform Load (N/m2) |
Rolling load (N) |
|
10 times |
10000 times |
|||||
FS662 |
≥3000 |
≥445 |
≥9000 |
≥12500 |
2946 |
2356 |
FS800 |
≥3600 |
≥536 |
≥10800 |
≥16100 |
3560 |
2670 |
FS1000 |
≥4500 |
≥670 |
≥13500 |
≥23000 |
4450 |
3560 |
FS1250 |
≥5600 |
≥780 |
≥16800 |
≥33000 |
5560 |
4450 |
FS1500 |
≥6700 |
≥1005 |
≥20100 |
≥34500 |
6675 |
5340 |
Size: 600*600*32mm, 600*600*40mm
