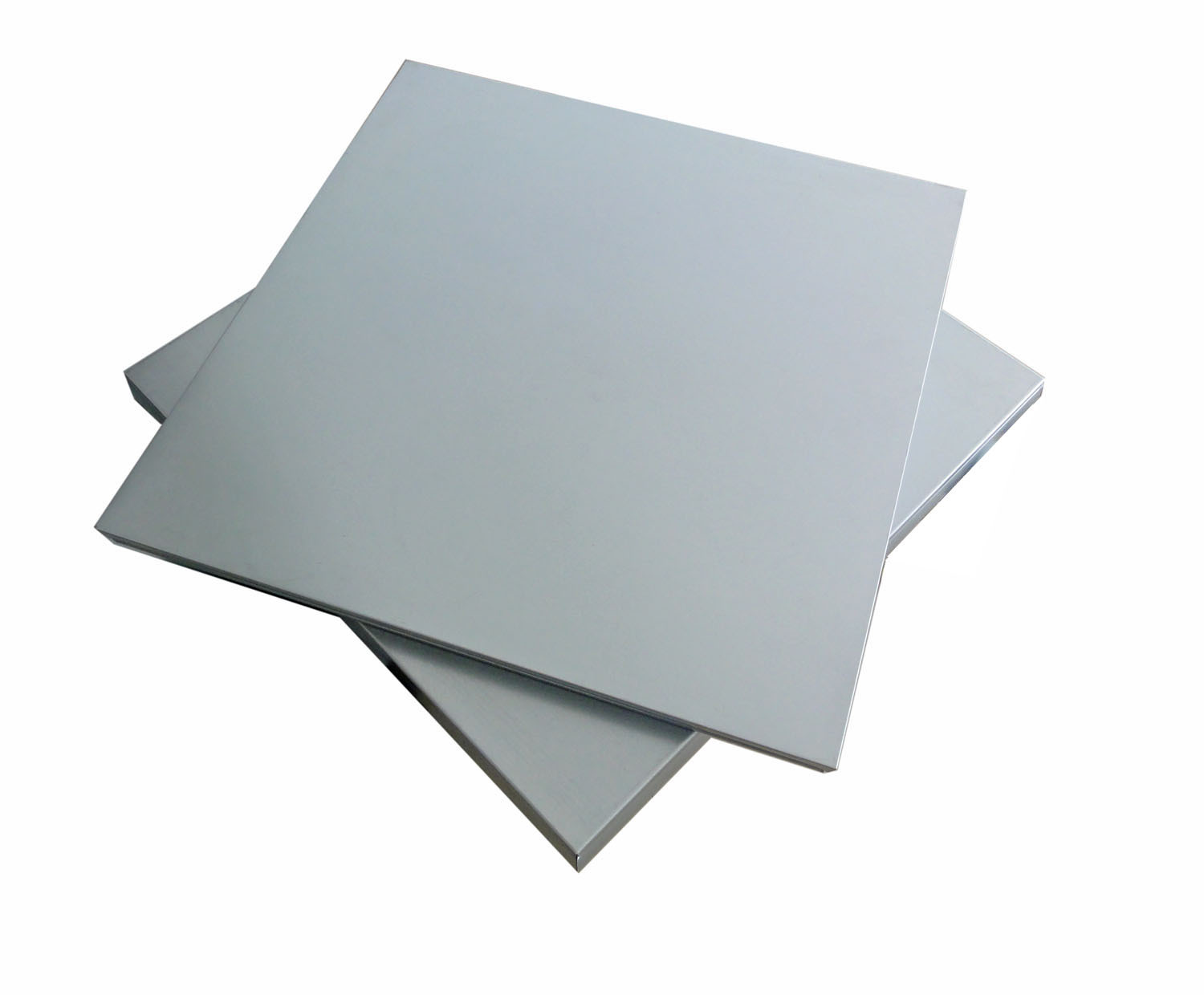

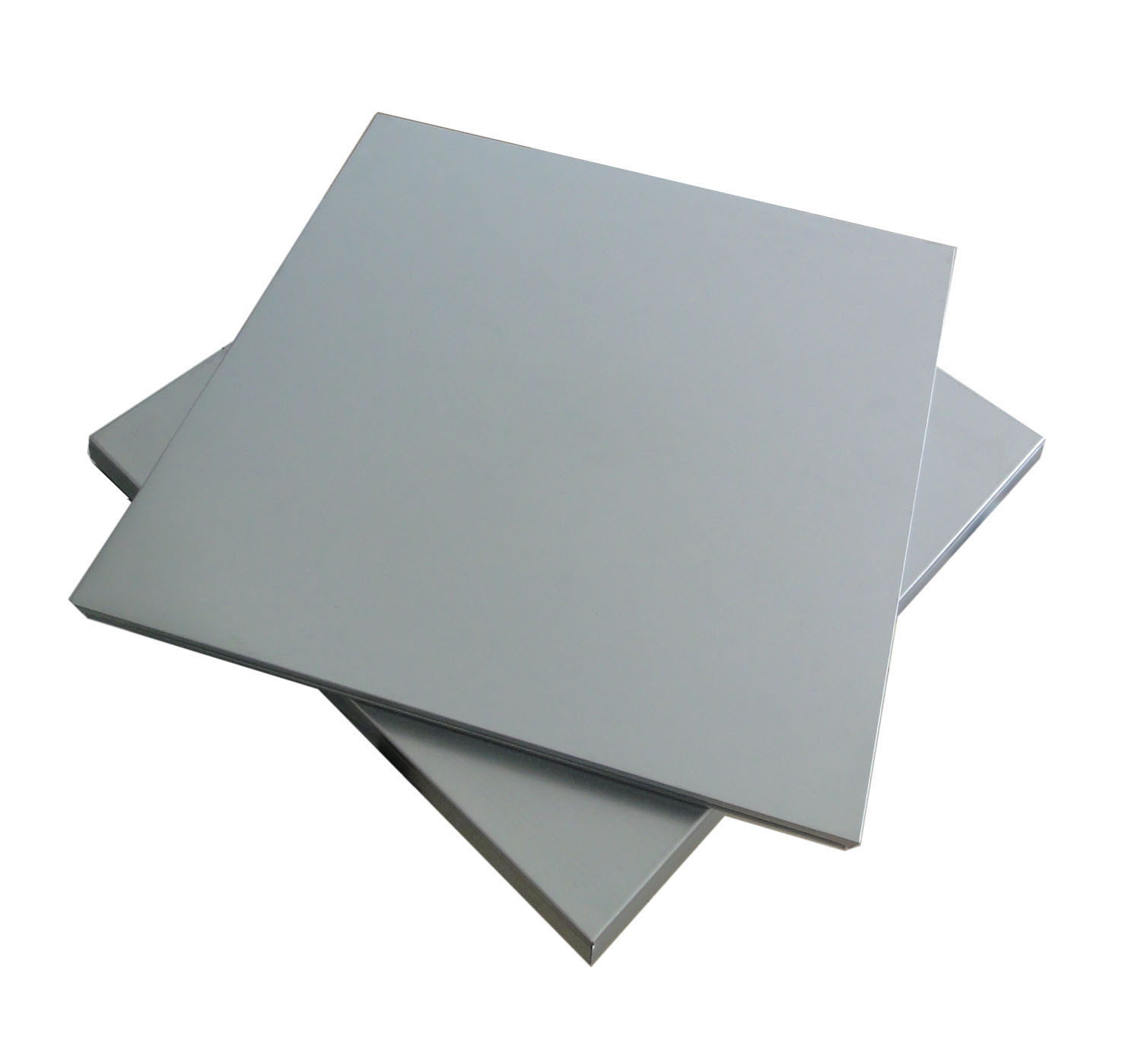

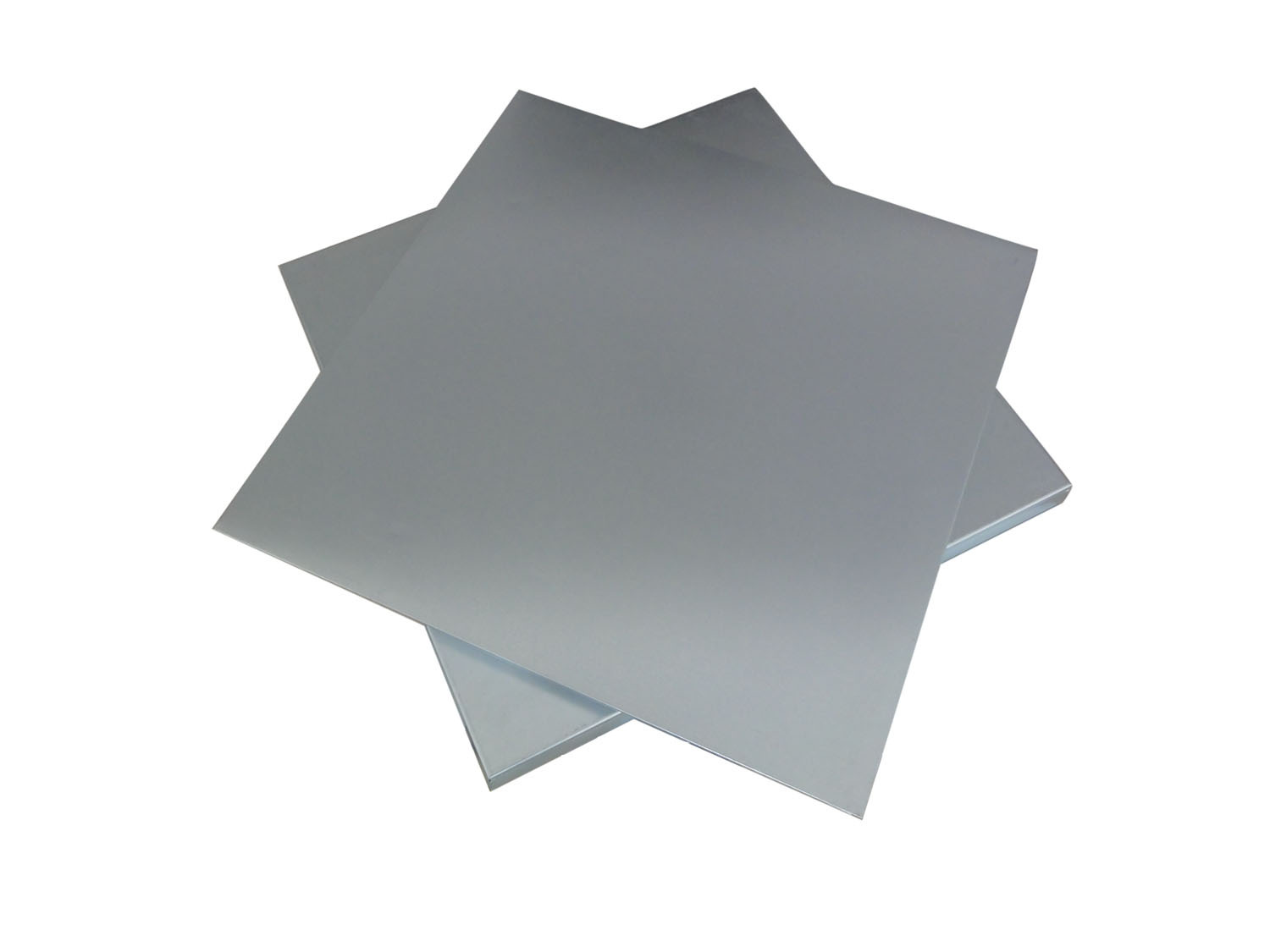

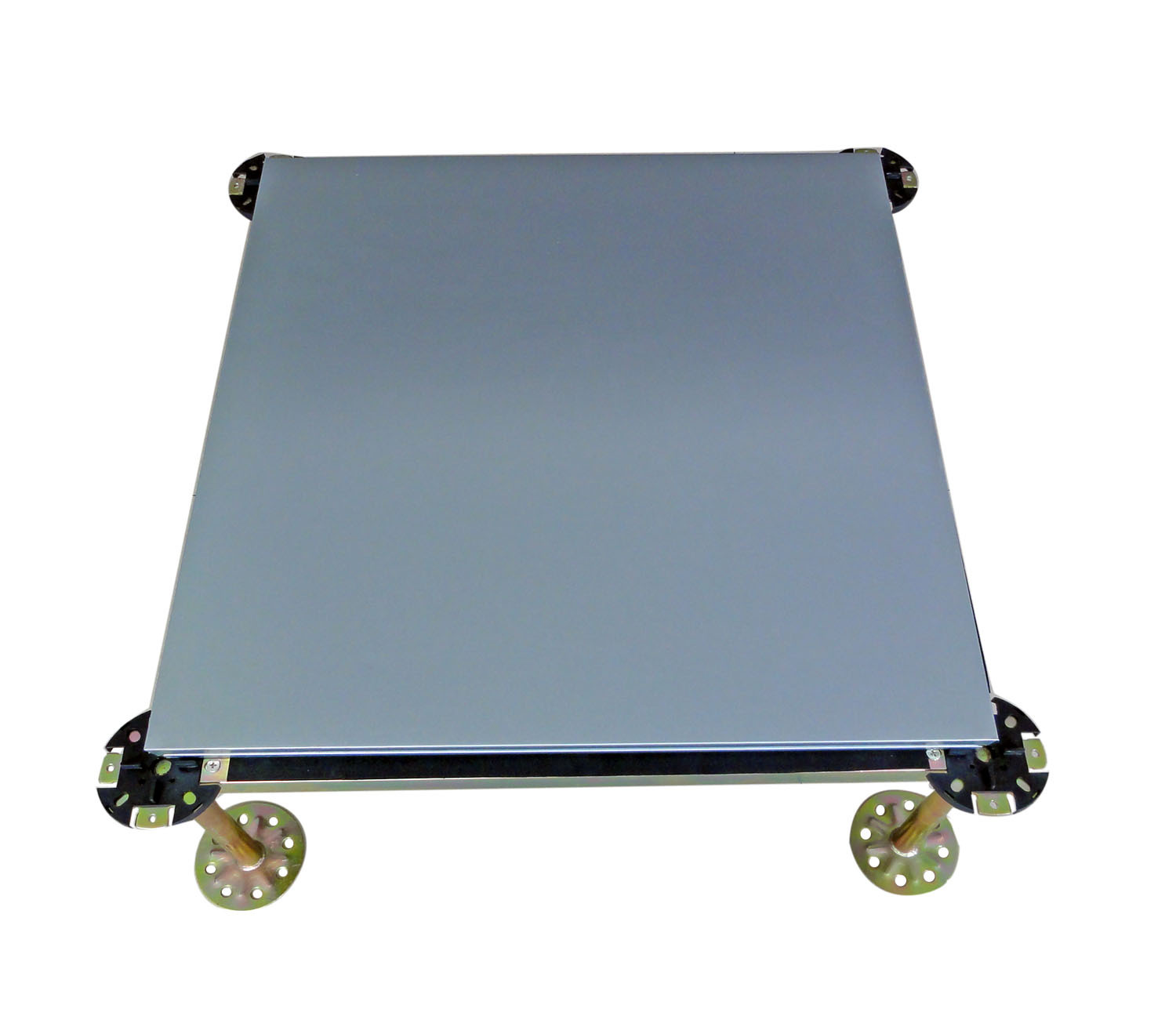

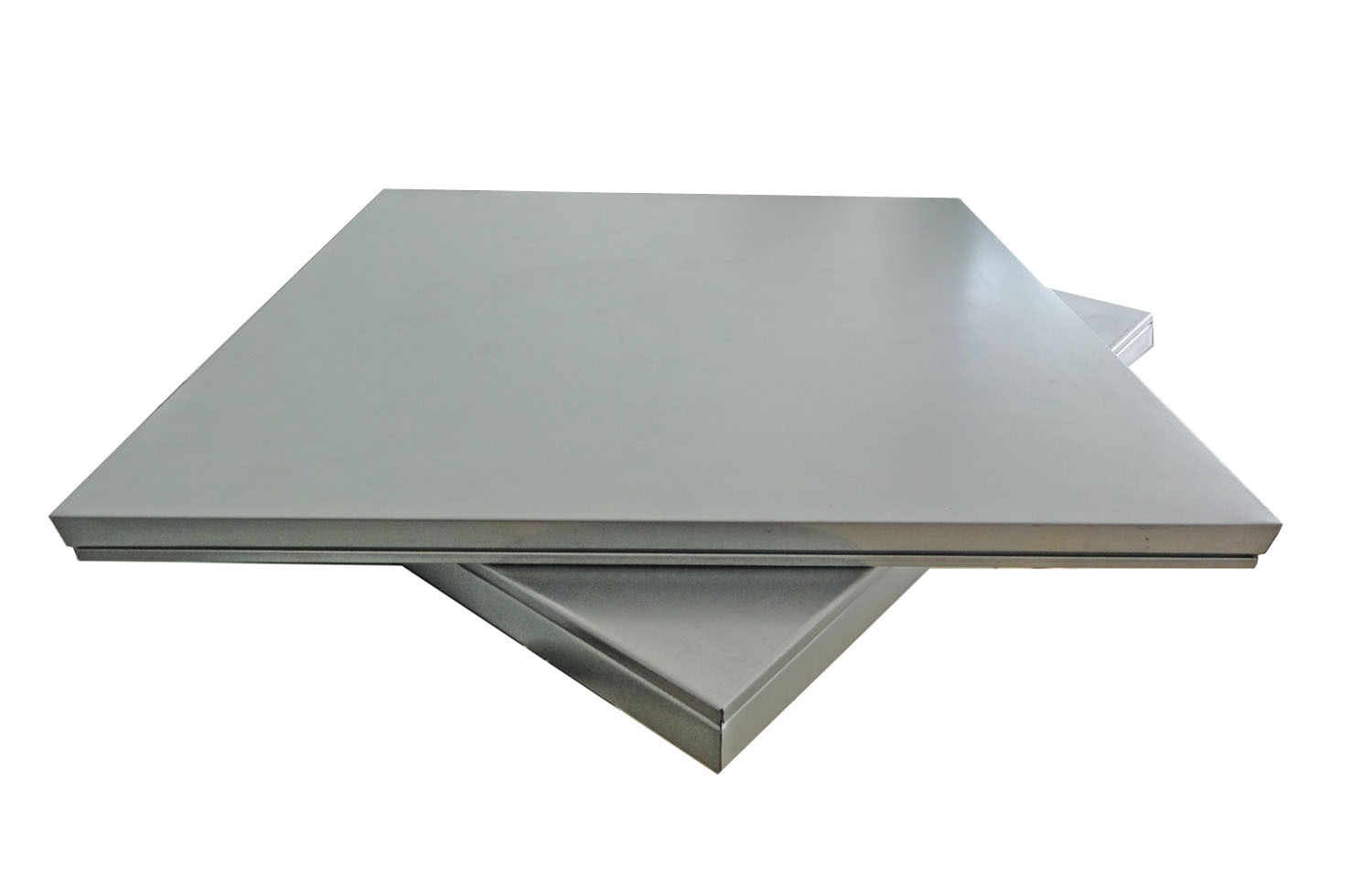

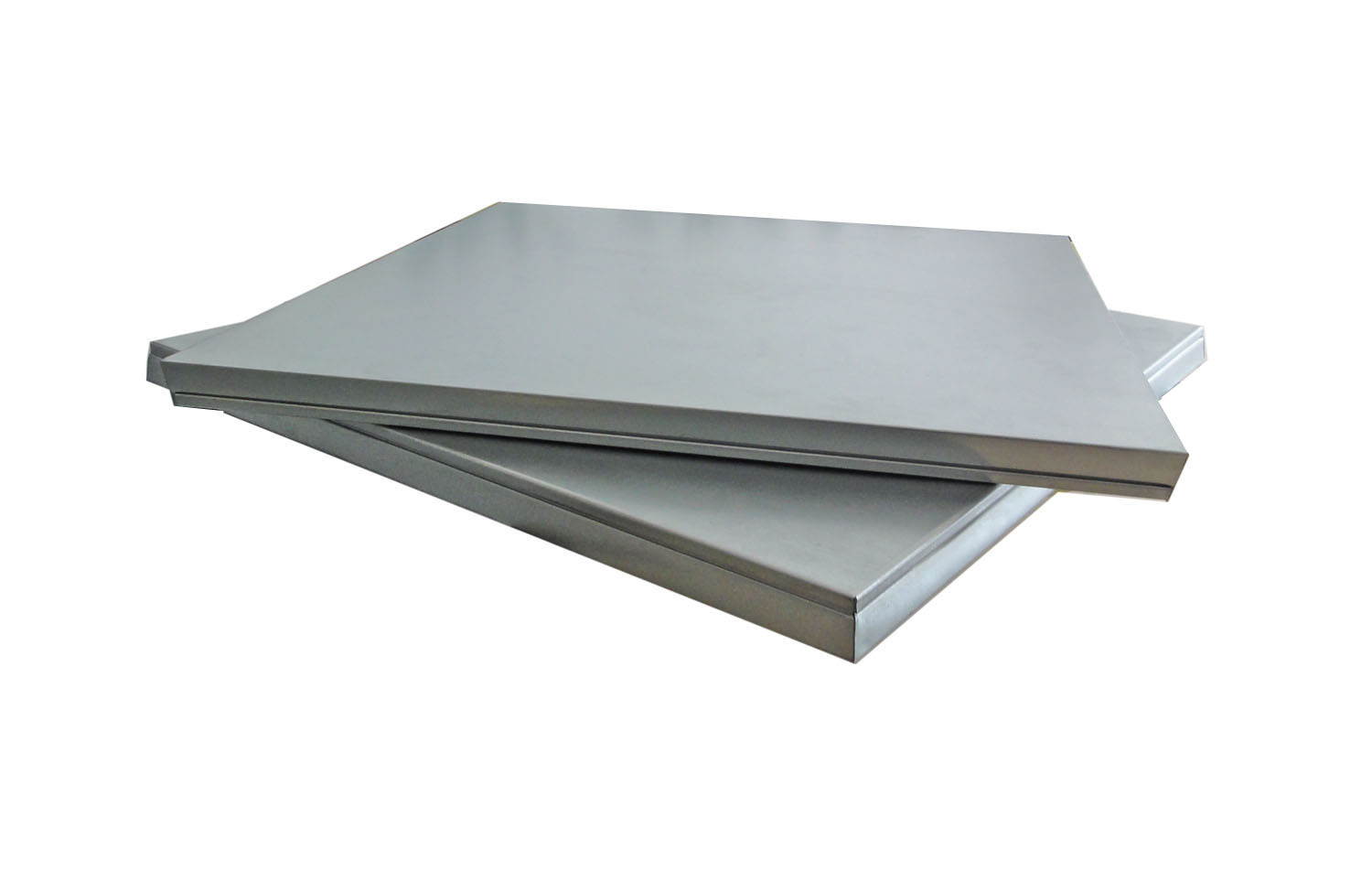

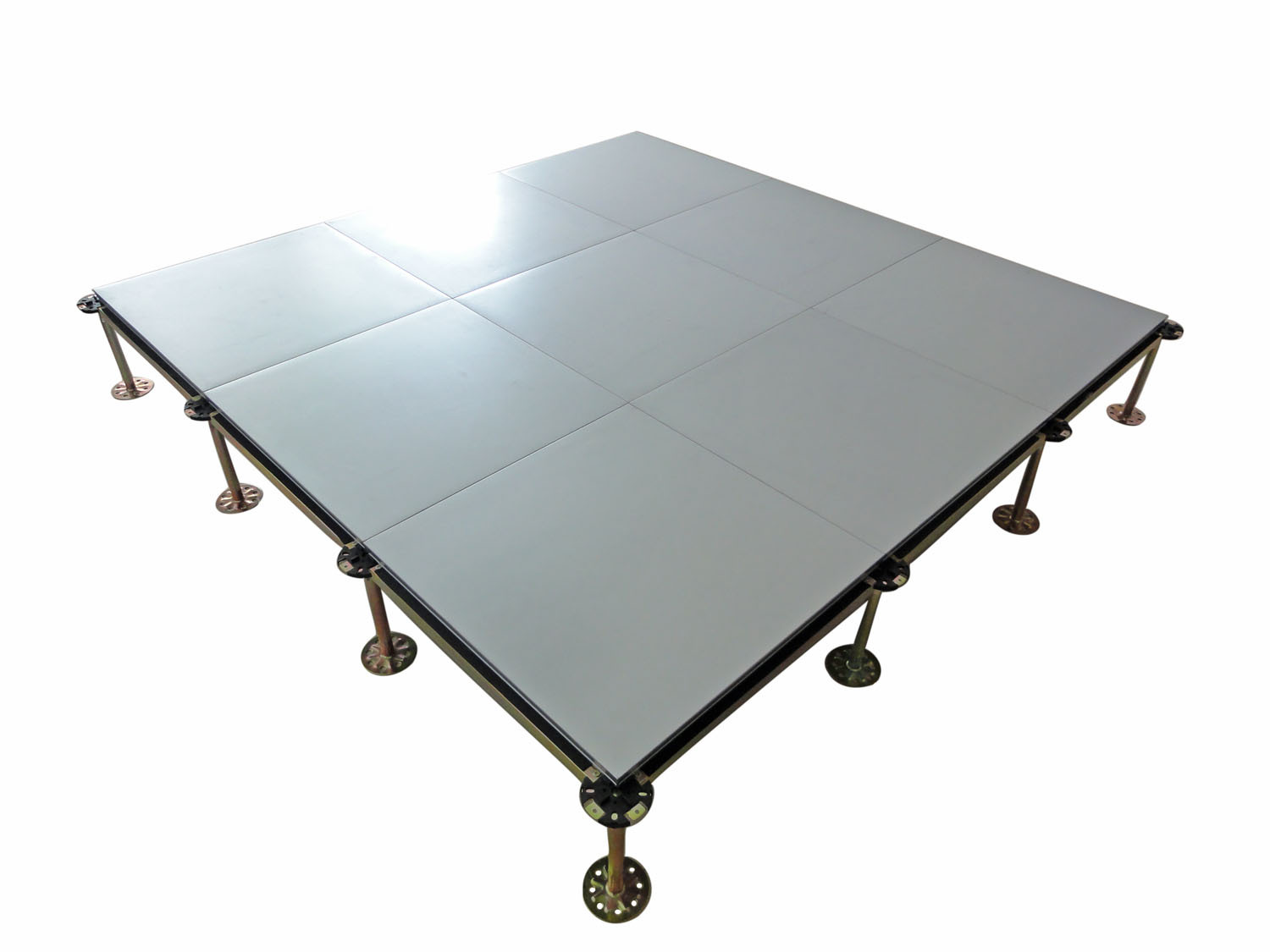

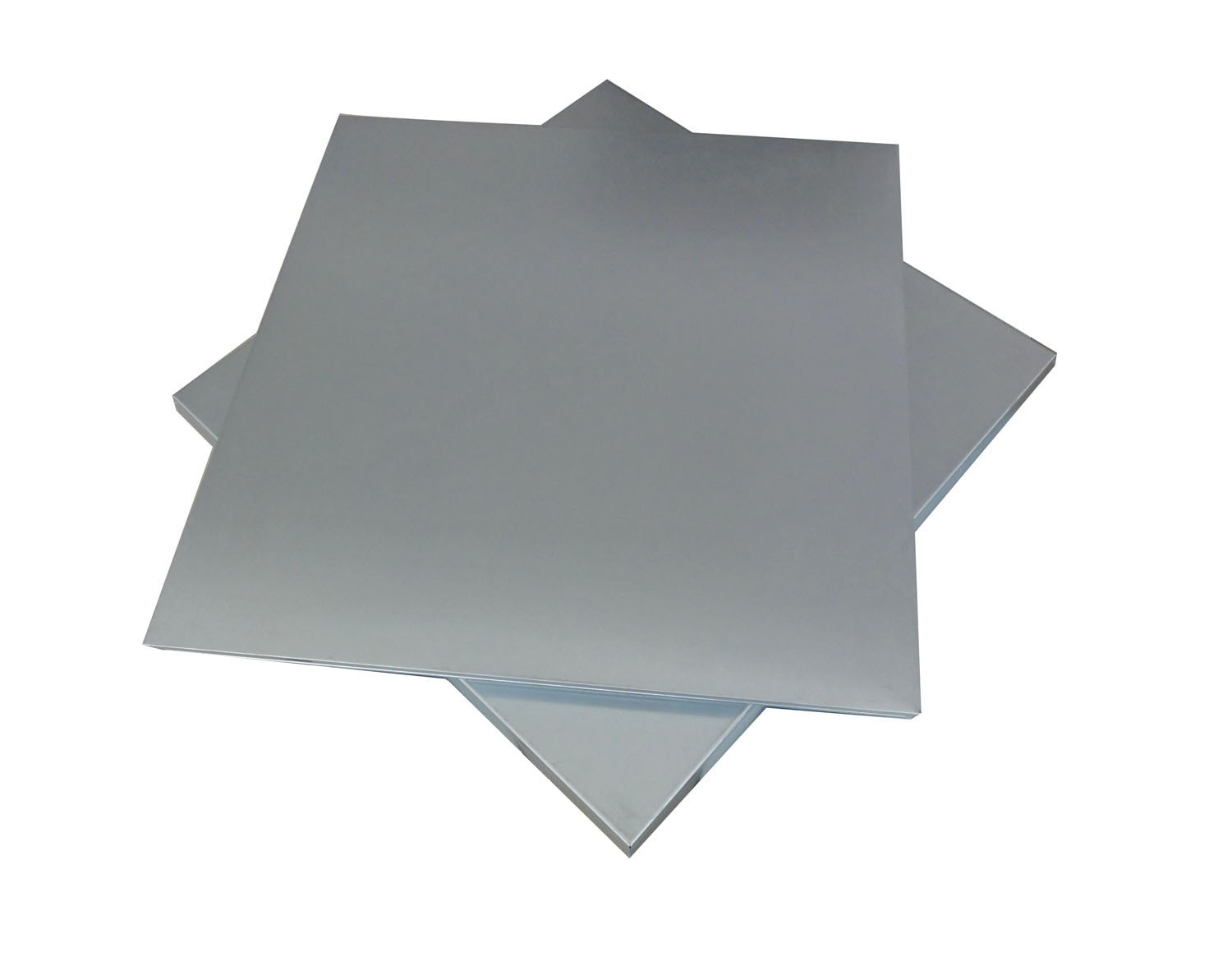

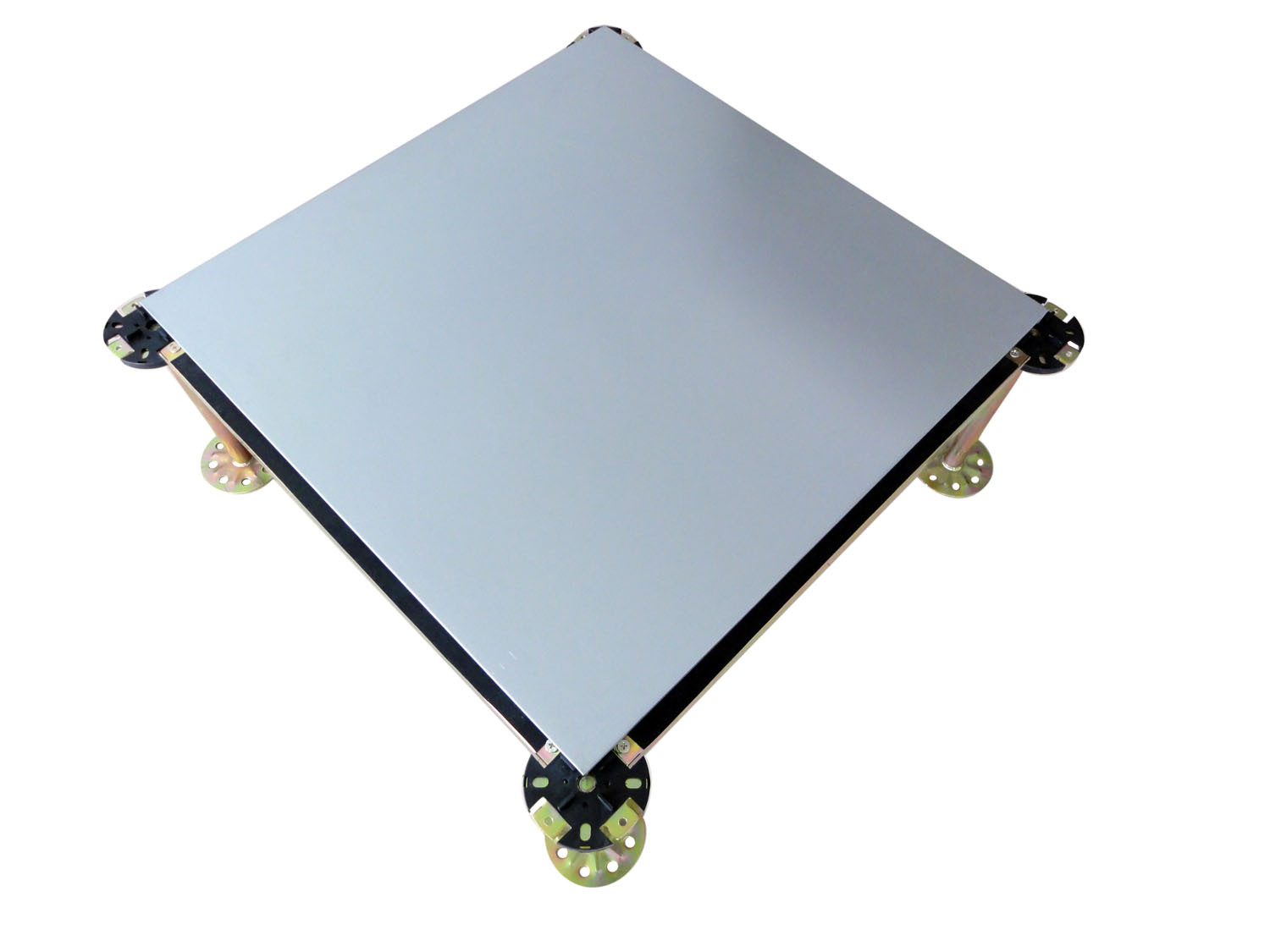

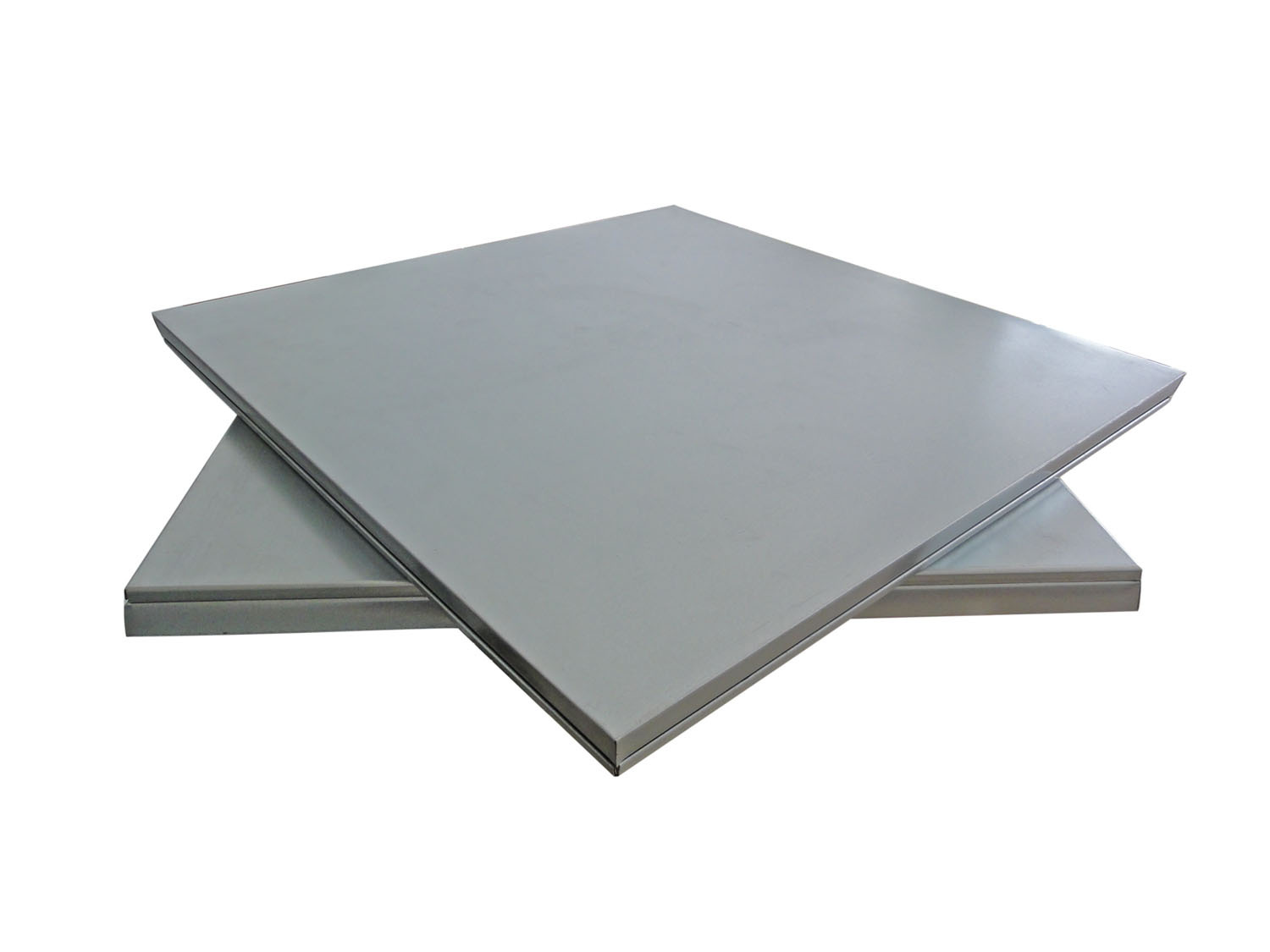

Galvanized steel plate encasing Calcium Sulphate base panel

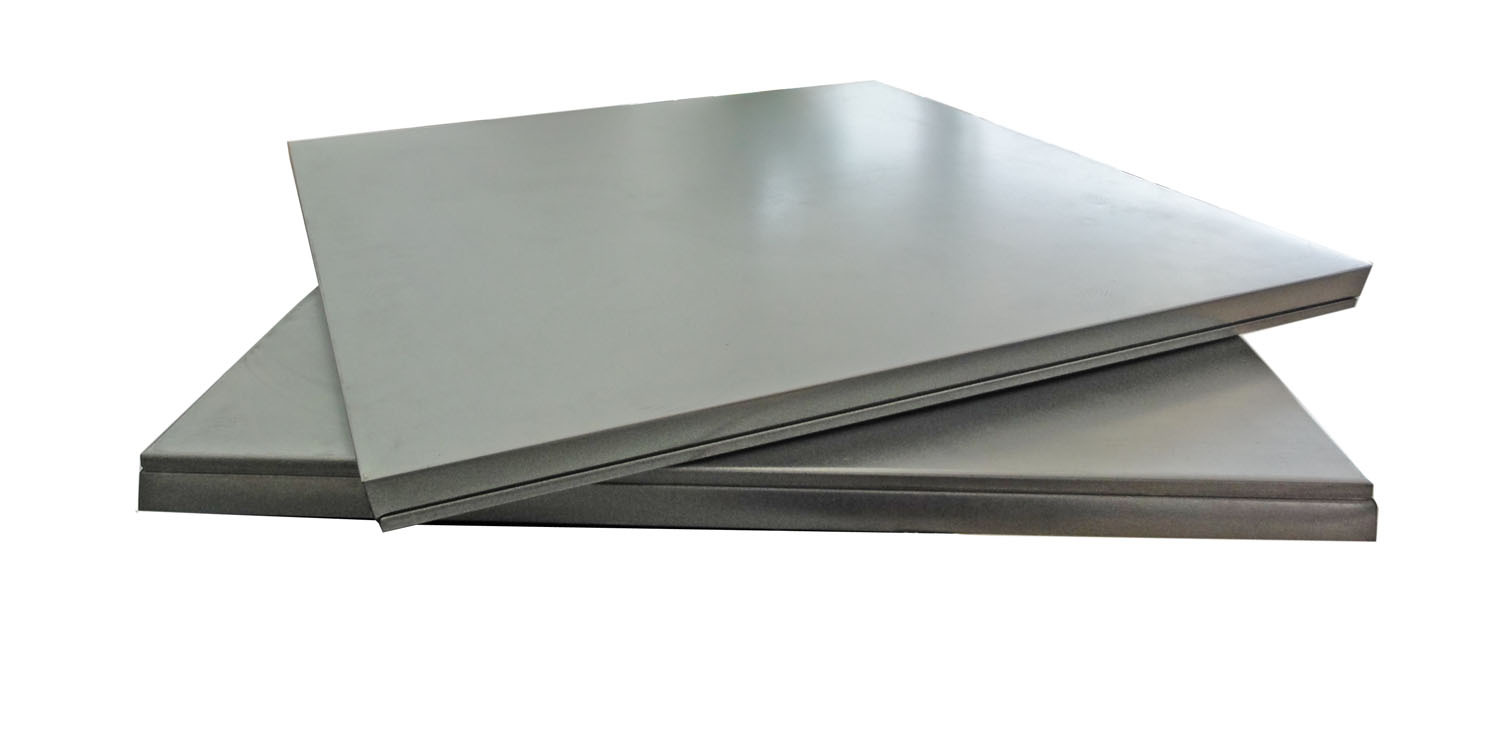

Steel sealed edge
Applicable for various top tiles like carpet, HPL, PVC and other tiles
Characteristic
Full galvanized steel encasing Calcium Sulphate, tight sealing and waterproof
High dimensional precision, high loading capacity and shockproof
Adjustable height for pedestal, assembly agility, large wire and good exchangeability
Elegant appearance for various top tiles
Recyclable, convenient removing, cost saving, long performance life

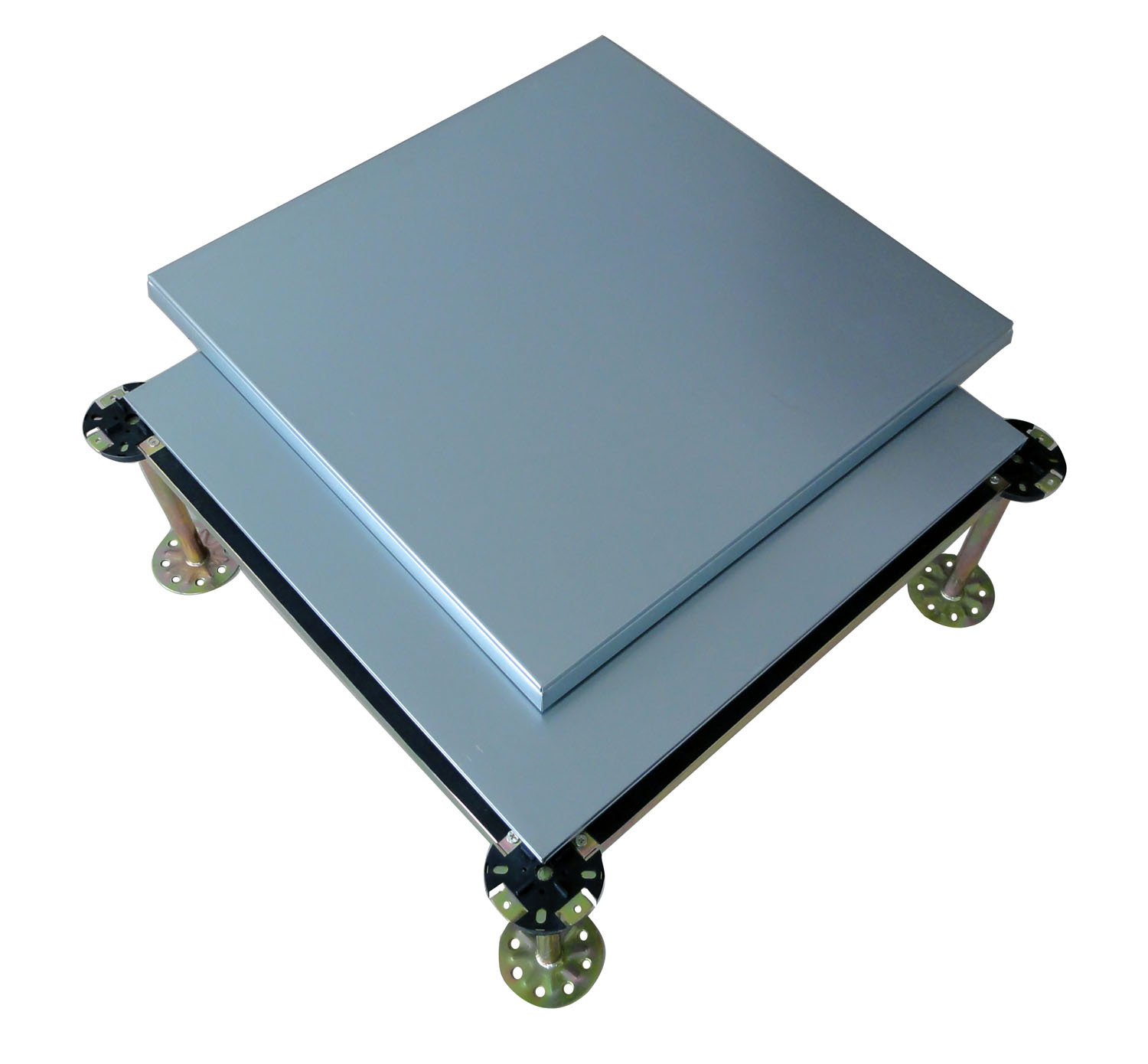

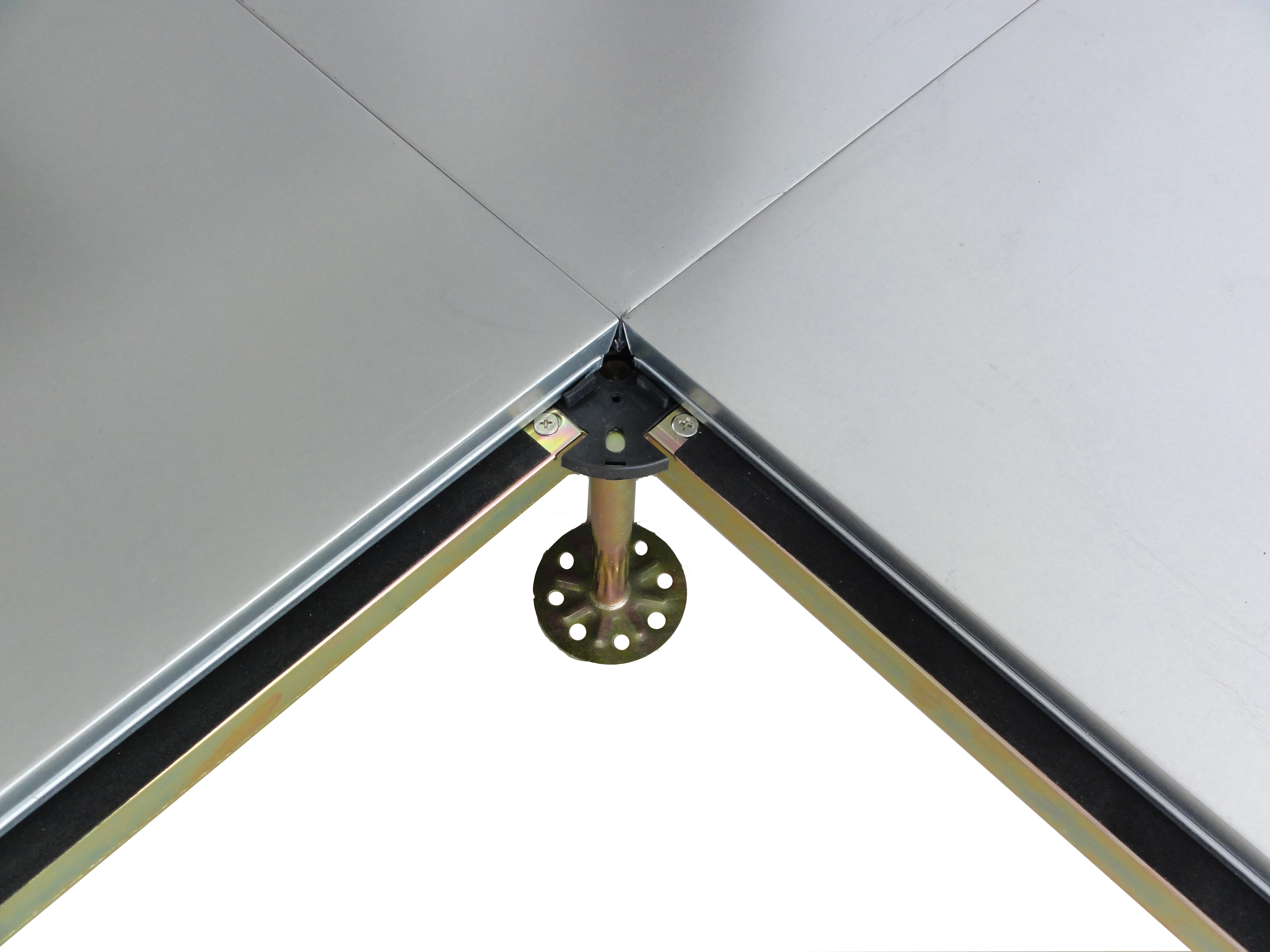

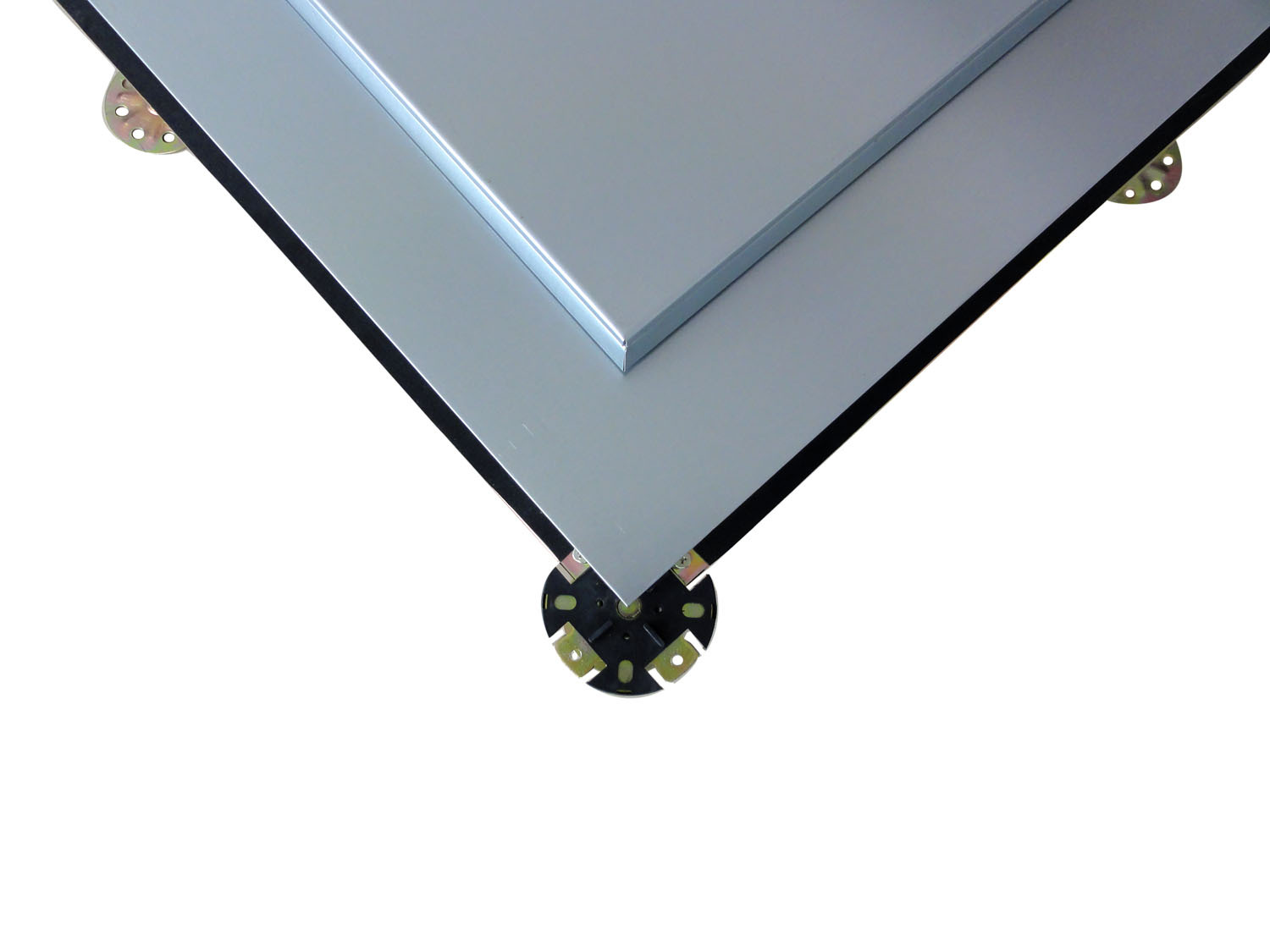

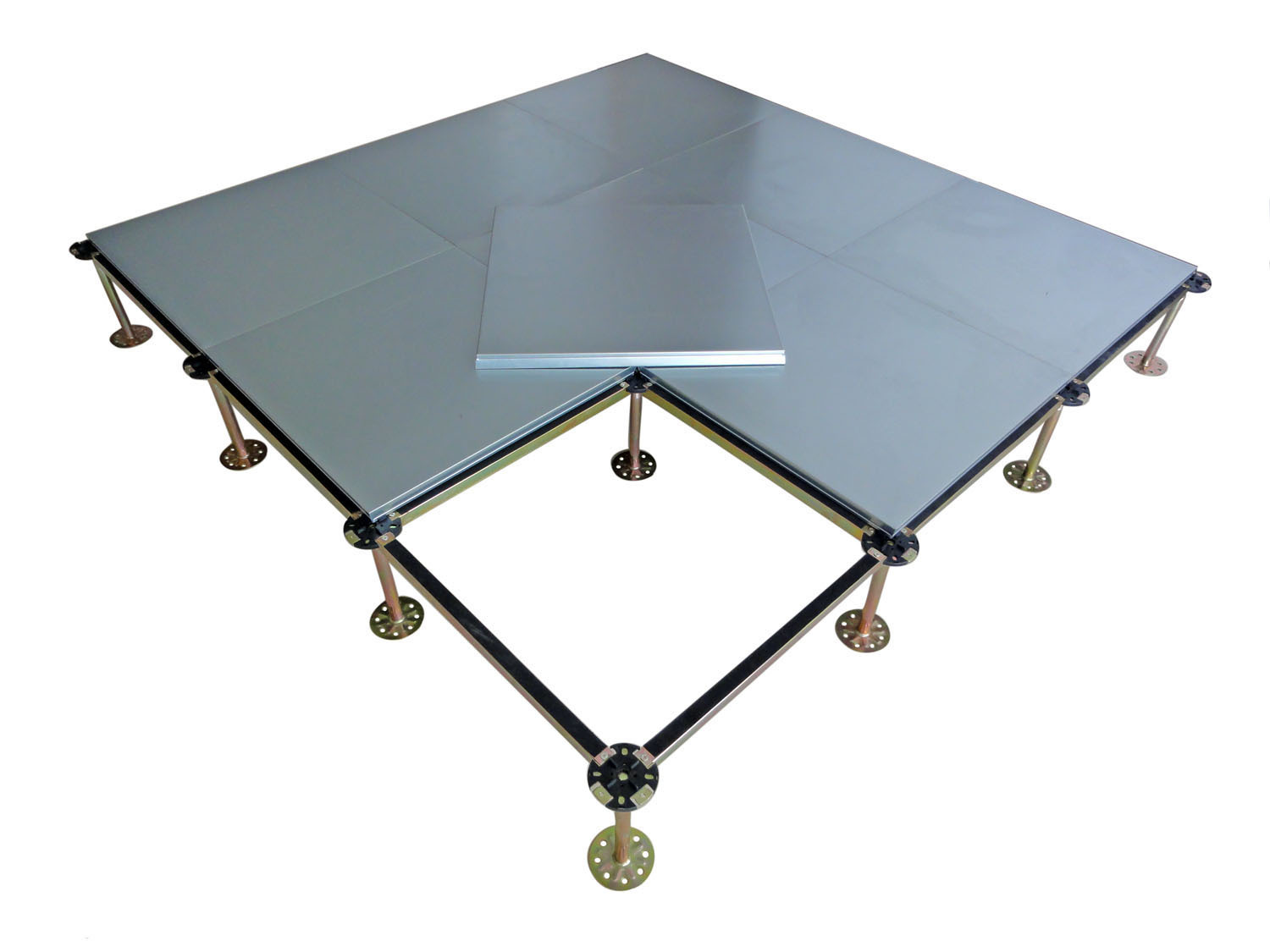

Die casting steel structure pedestal, plastic gasket on top, height could be 70-1500mm, with or no square tube stringer
Application
5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings’ flooring reform.
Technical Specification
|
Model |
Concentrated load (N) |
Impact load (N) |
Ultimate load (N) |
Uniform Load (N/m2) |
Rolling load(N) |
|
|
10 times |
10000 times |
|||||
|
FS662 |
≥3000 |
≥445 |
≥9000 |
≥12500 |
2946 |
2356 |
|
FS800 |
≥3600 |
≥536 |
≥10800 |
≥16100 |
3560 |
2670 |
|
FS1000 |
≥4500 |
≥670 |
≥13500 |
≥23000 |
4450 |
3560 |
|
FS1250 |
≥5600 |
≥780 |
≥16800 |
≥33000 |
5560 |
4450 |
|
FS1500 |
≥6700 |
≥1005 |
≥20100 |
≥34500 |
6675 |
5340 |
|
FS2000 |
≥8900 |
≥1340 |
≥26700 |
≥46000 |
8900 |
7120 |
Size: 600*600*25mm, 600*600*28mm, 600*600*30mm
