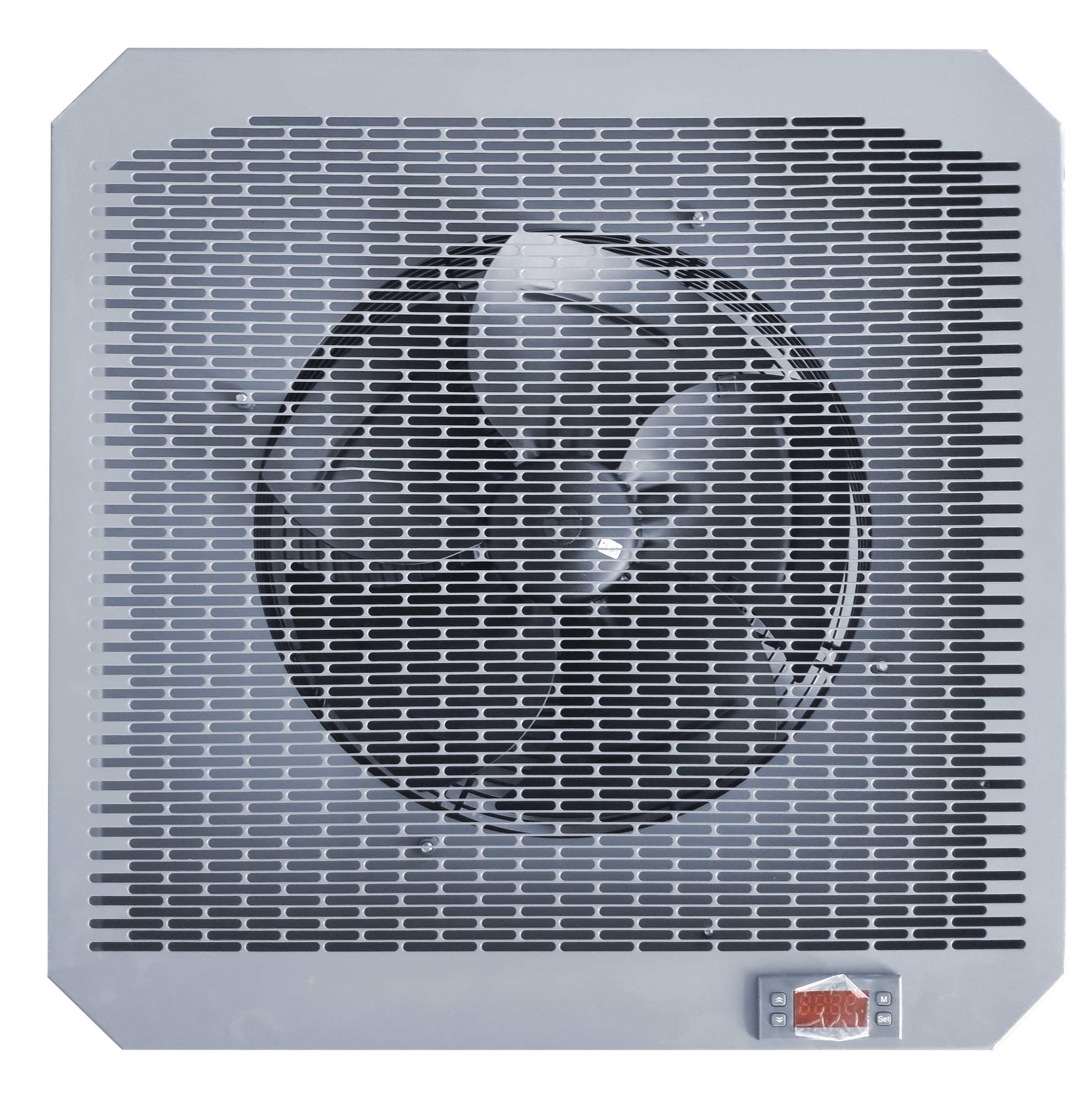

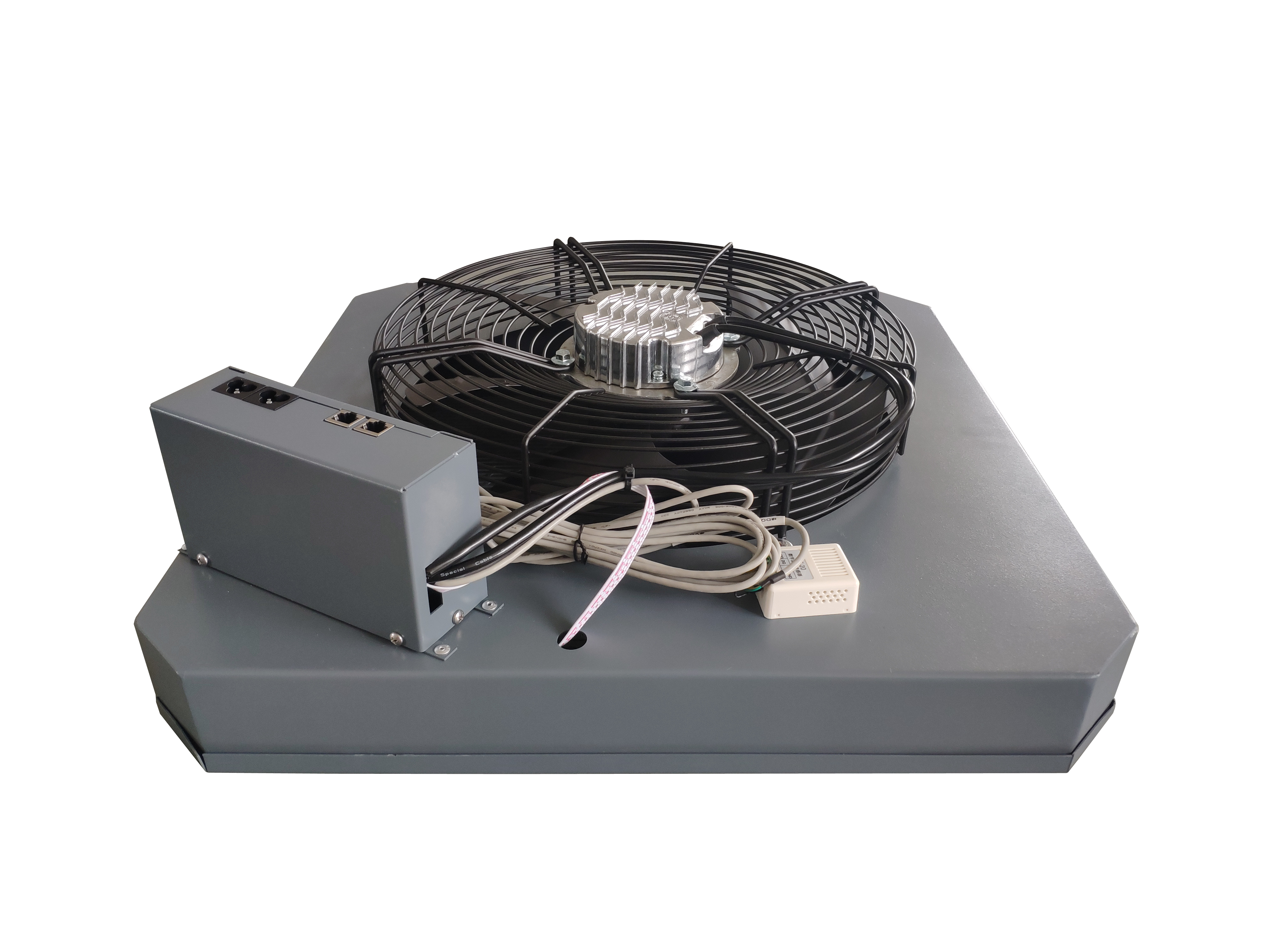

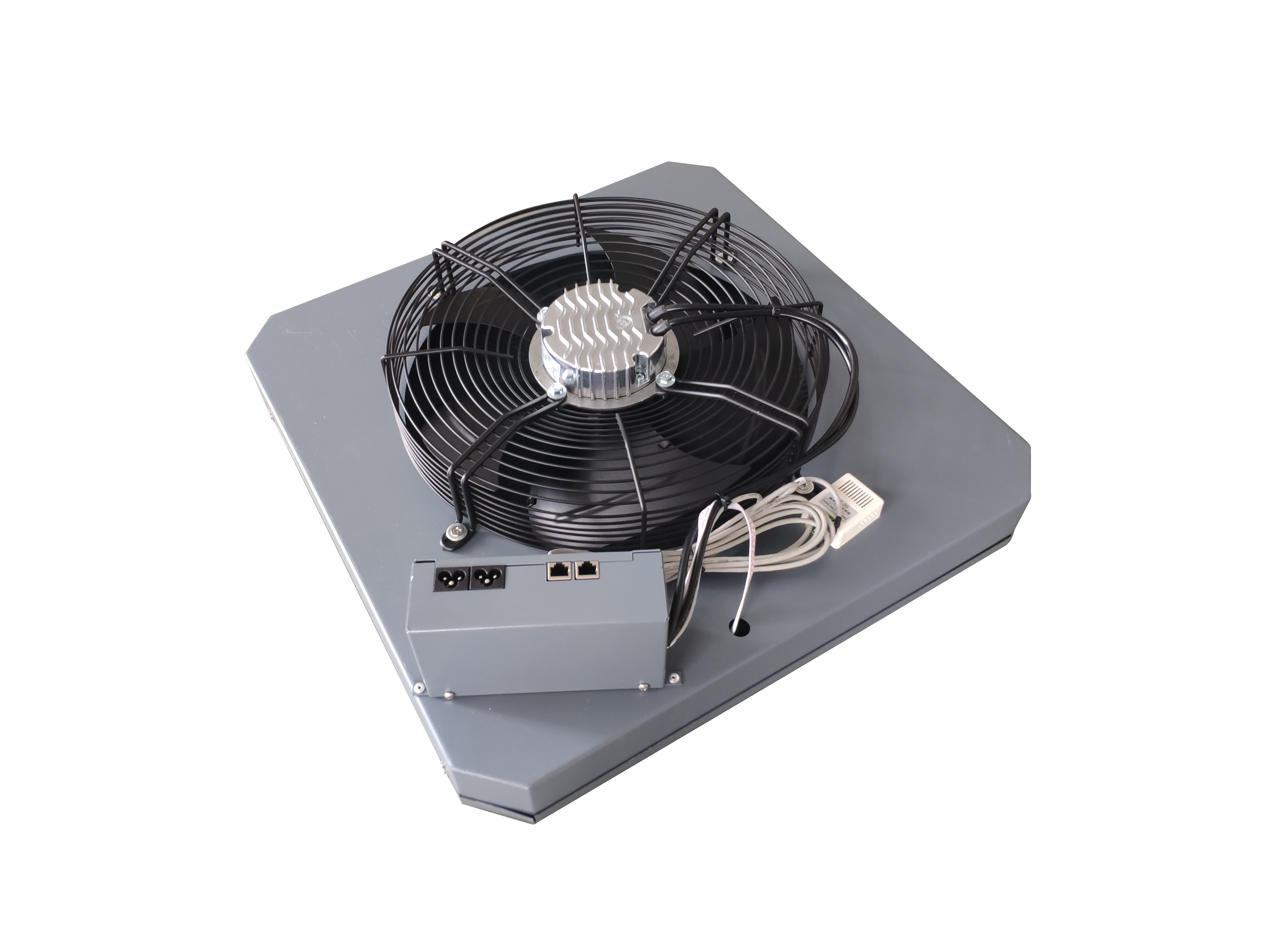

The fan unit is designed to provide a blast of cooling through an individual directional airflow panel. The fan has multiple control options to automatically turn on when conditions require additional cooling. This powerful solution is ideal for solving the toughest hot spots in a data center.
PRODUCT MODEL
|
Model |
Fan type |
IT heat load |
Size |
MAX Air Volume |
Total power |
|
ABU2650-1EC350 |
EC350 |
15KW |
600*600*198mm |
3000m³/h |
140W |
|
ABU4600-1EC450 |
EC450 |
22KW |
600*600*198mm |
5100m³/h |
280W |
PRODUCT CHARACTERISTICS
| Specification | Value |
|---|---|
| Panel size | 600 × 600 × 198 mm |
| Fan type | EC350 / EC450 |
| IT heat load | 15 kW (EC350) / 22 kW (EC450) |
| Max air volume | 3,000 m³/h (EC350) / 5,100 m³/h (EC450) |
| Total power | 140 W (EC350) / 280 W (EC450) |
| Airflow path | Directed through an individual airflow panel |
| Model reference | ABU2650-1EC350 / ABU4600-1EC450 |
As a raised access flooring supplier, we cover a complete system rather than single items: pedestals and stringers, antistatic PVC and HPL tiles, PVC skirting, panel lifters and cutting blades, air diffusers, brush grommets, flip outlet boxes and in-floor cooling units. Our structural components suit OA, steel, wood core, calcium sulphate and aluminium raised floors, with pedestal heights from 70 to 1500 mm. Specifications such as stringer size and thickness can be customised to your project, so contractors can source compatible components, installation tools and cooling accessories from one supplier for data center, computer room and commercial fit-outs.
One unit covers one floor panel position, so a row with several warm racks is normally handled position by position rather than with a single large fan. Most teams start at the worst cabinet and add a temperature control fan system unit at the next position only if that rack stays warm through a full load cycle.
Yes. It installs into the panel grid rather than into ductwork, so it can be fitted during your normal floor access work instead of as a building services project. If your raised floor solutions are covered by a live-service agreement, confirm the method of procedure with our team before the first position goes in, and work one position at a time.
Match the unit to the IT load at each position: the range is built around two heat-load bands, so a standard-density cabinet and a high-density cabinet do not call for the same model. Send us the kW figure for the racks that run warm and we will confirm which one fits each position.
There are no filters to replace and no service parts to order, so the unit does not add to the room's maintenance routine. The one habit worth keeping is to leave the perforated panel above the unit clear when cables are re-routed under the floor; a blocked panel is the most common reason airflow drops off, and it is easy to check by eye.
Yes. Nothing about the installation ties it to one spot, so it can be lifted and re-set at another position when racks are rearranged. Let us know the new location when you plan the move so the airflow direction and control settings suit the equipment it will be serving.
They can, and many larger rooms do exactly that. A single room can use one raised floor cooling fan model in the standard positions and the higher-capacity model where cabinets draw more power, which keeps the deployment cost tied to real rack density instead of sizing every position for the worst case.
