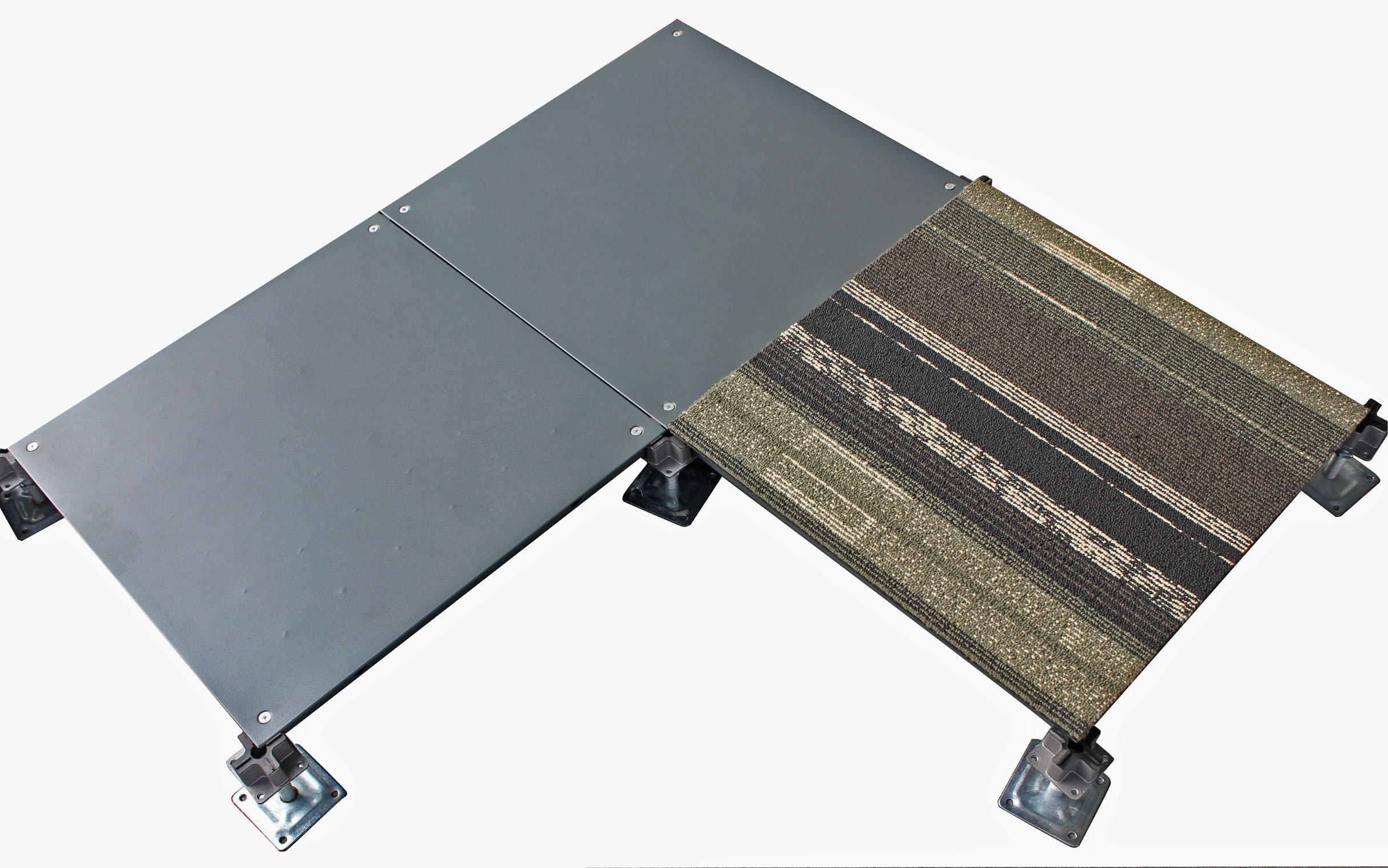

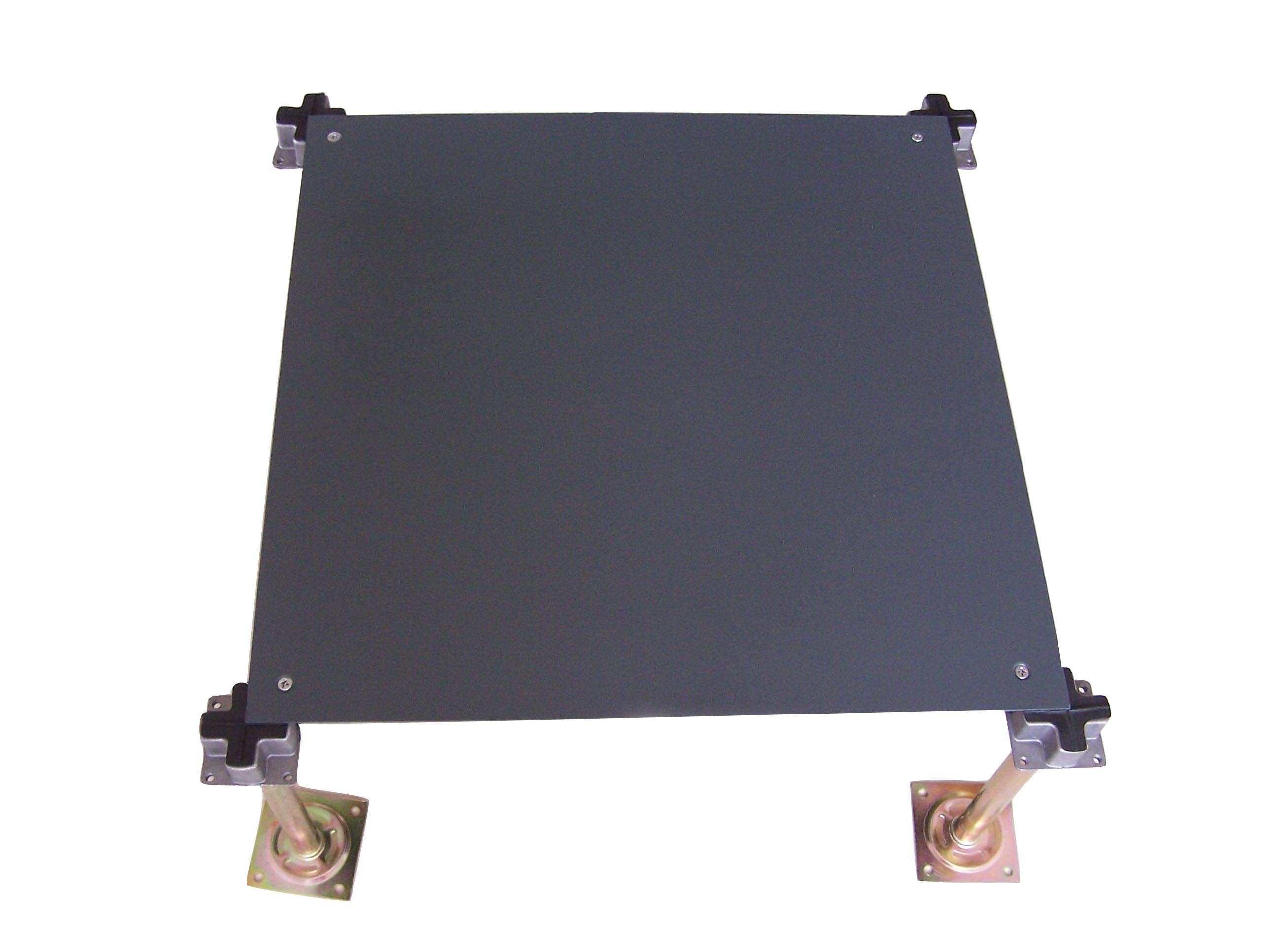

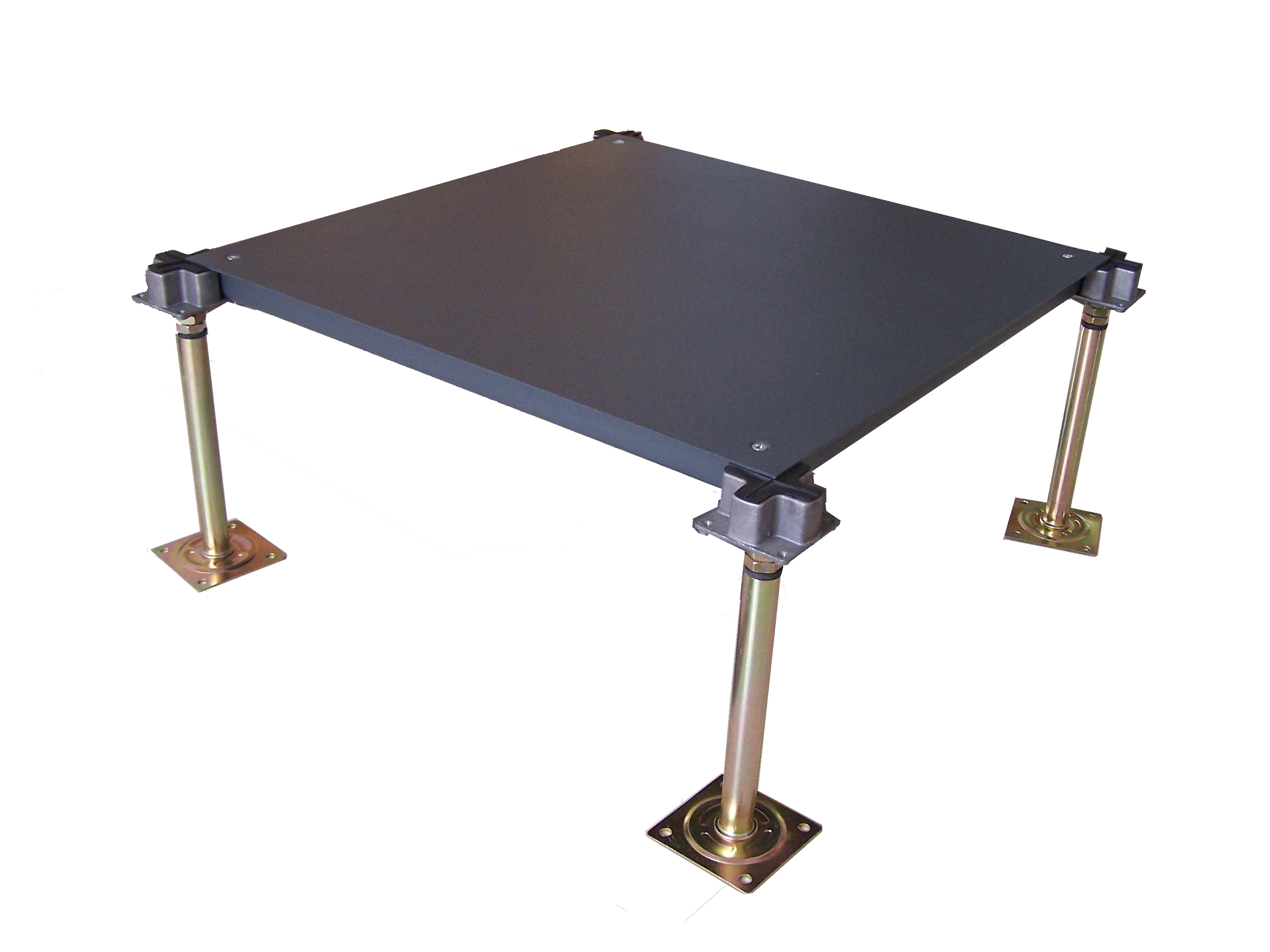

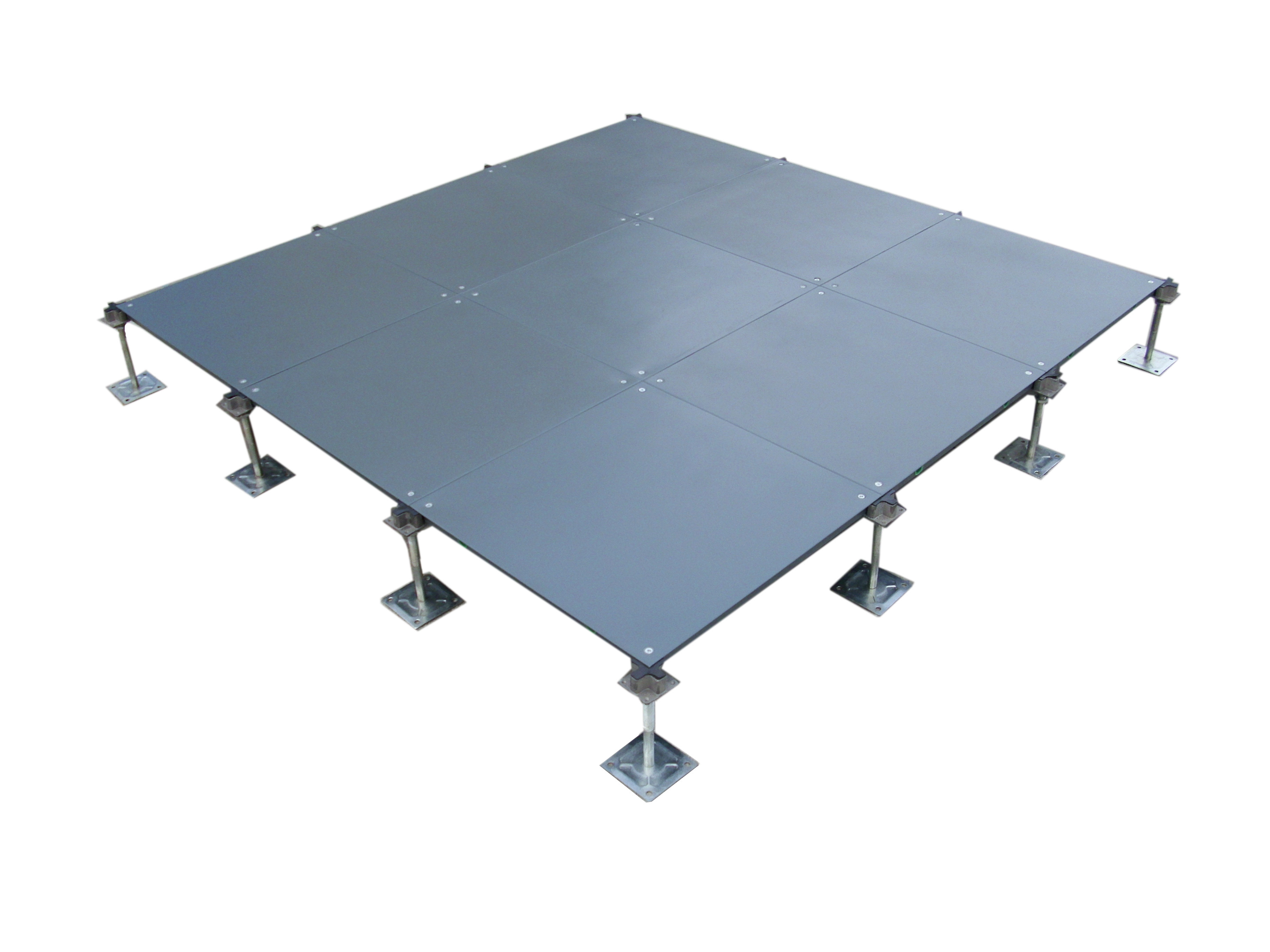

Bare Finish Steel Raised Floor

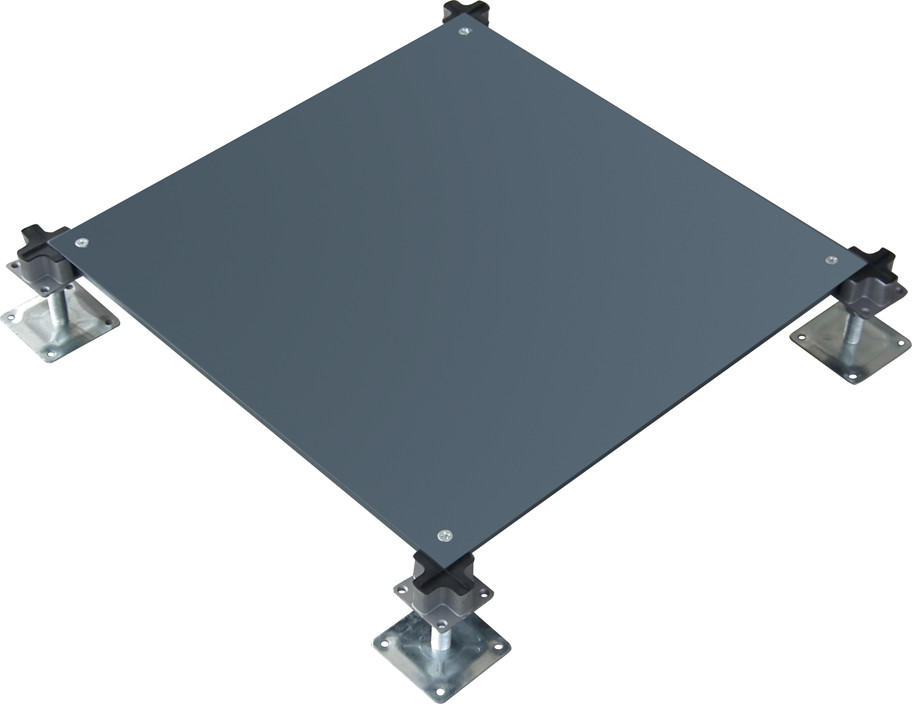

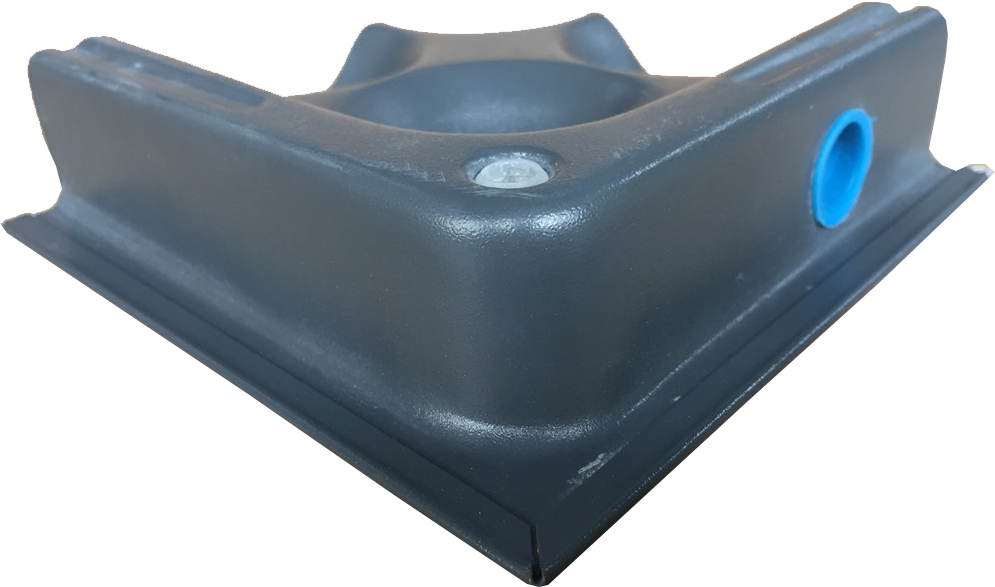

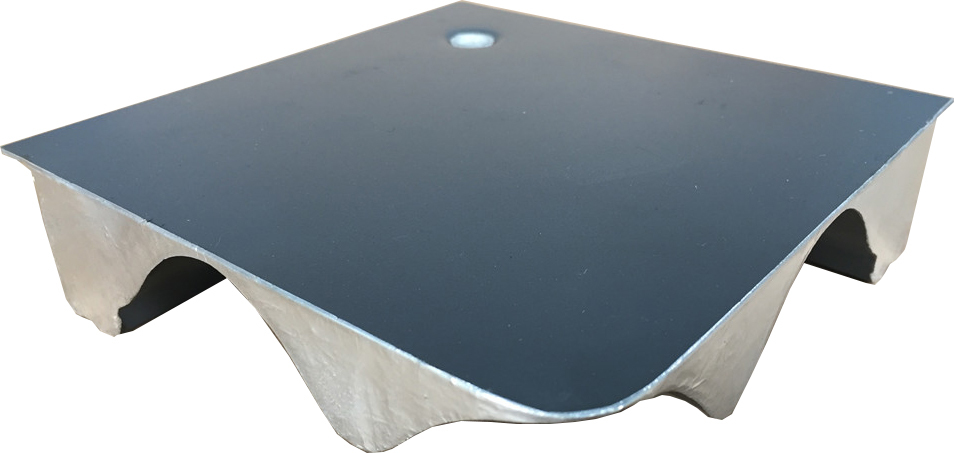

Full steel, independent four corners support structure. Lower plane is ST14 stretched plate, surface plane is SPCC hard steel painted with epoxy resin. Foaming cement infilled. Lock hole in four corners.

  • Bare Finish Steel Raised Floor
  • Bare Finish Steel Raised Floor
  • Bare Finish Steel Raised Floor
  • Bare Finish Steel Raised Floor
  • Bare Finish Steel Raised Floor
  • Bare Finish Steel Raised Floor
  • Bare Finish Steel Raised Floor

Description

Application

5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings’ flooring reform.



Characteristic

Full steel structure, high quality cement infill, surface painted with epoxy resin

Lock holes in 4 corners or Stronger pedestal& stringer substructure

Elegant appearance for paving Carpet, HPL, PVC, Ceramic, Granite, etc

Recyclable, convenient removing, cost saving, long performance life

Adjustable height for pedestal, height could be 50mm~1000mm, assembly agility, large wire, good exchangeability, convenient maintenance.



Technical Specification

Model

Concentrated load(N)

Impact load (N)

Ultimate load (N)

Uniform Load (N/m2)

Rolling load(N)

10 times

10000 times

FS662

≥3000

≥445

≥9000

≥12500

2946

2356

FS800

≥3600

≥536

≥10800

≥16100

3560

2670

FS1000

≥4500

≥670

≥13500

≥23000

4450

3560

FS1250

≥5600

≥780

≥16800

≥33000

5560

4450

FS1500

≥6700

≥1005

≥20100

≥34500

6675

5340

FS2000

≥8900

≥1340

≥26700

≥46000

8900

7120



Size: 500*500*28mm, 600*600*33mm or 610*610*33mm
