Tempered glass is a kind of safety glass or actually prestressed glass. To improve glass strength, chemical or physical method is used to render glass surface with pressure stress so that it offers the surface stress when receiving external forces. In this way, the glass increases its load capacity and resistance to wind pressure, heat & cold, impact, etc.
Functional Positioning for Critical Infrastructure Environments
The Glass Raised Access Floor is engineered for environments requiring both aesthetic clarity and functional robustness. Primarily targeting data centers, server rooms, and office infrastructures, this product caters to demanding applications such as raised computer room floors and server room flooring. These environments require robust support for equipment while maintaining strict electrostatic discharge controls. By integrating antistatic features within its toughened tempered glass panels, this solution provides a reliable and modernized access flooring option that aligns well with requirements specified by raised floor solutions in high-tech facilities.
Advanced Technical Composition and Structural Specifications
Constructed from chemically and physically toughened tempered glass, each panel measures 600 x 600 mm with selectable thicknesses of 32, 35, or 40 mm to suit installation demands. The conductive aluminum frame enhances structural integrity while enabling antistatic performance essential for sensitive electronics. Load testing confirms capacity over 350 kilograms with detailed permanent deflection values under incremental loads, evidencing durability under heavy foot traffic and equipment mass. These properties ensure compatibility and seamless integration within access flooring systems, supporting precise engineering requirements specified by raised access floor manufacturers.
Industry Applications in Data and Office Environments
The deployment of this server room raised floor solution extends beyond aesthetics to operational efficiency in data centers and technologically advanced offices. The panels’ transparency allows light transmission while maintaining strict compliance with electrostatic discharge protocols critical to safeguarding IT hardware. Further, the product’s structural compatibility with existing standard raised floor infrastructures reduces installation complexities and retrofitting costs. By supporting heavy equipment loads and static control, this access flooring solution enhances both the performance stability and visual environment in professional spaces dedicated to computing and data processing.
Product Advantages
Structural and Modular Design Benefits

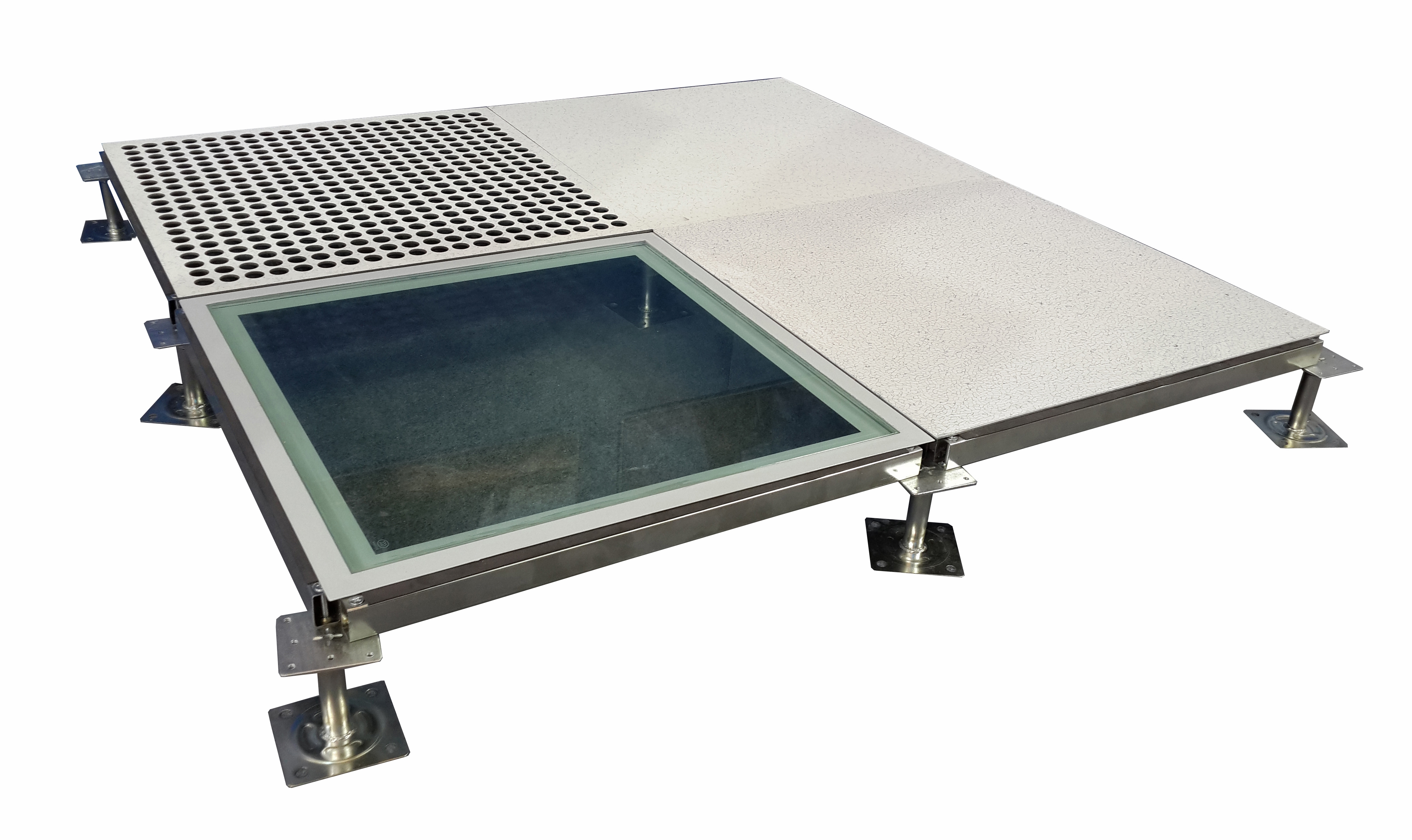

This Glass Raised Access Floor system exhibits a modular design compatible with standard panel dimensions used widely by raised access floor manufacturers. The conductive aluminum frame not only underpins the glass structure but also facilitates effective static dissipation, which is critical in controlled environments. The multiple thickness options allow engineers to tailor solutions to required load capacities and project specifications. Such flexibility enables integration within existing raised floor solutions without compromising system stability or performance, simplifying planning and execution in demanding server room flooring installations.
Enhanced Performance and User-Centered Usability
From a performance perspective, the toughened glass panel delivers exceptional load-bearing capability exceeding 350 kg, maintaining permanent deflection within stringent limits. The antistatic properties contribute to reducing electrostatic risk, vital for sensitive electronics in raised computer room floors. The transparency of the panels allows for increased lighting efficiency without sacrificing structural durability, benefiting operational workflows requiring visibility and access. These features collectively enhance user experience by providing a resilient, safe, and low-maintenance server room raised floor, streamlining facility management and reducing downtime risks.
Characteristic
1.High transparency: artistic, practical, widely applicable
2.It adopts the technology of toughing treatment
3.It can easily hold body weight and max load is over 350kg
4.It is same size with ordinary raised floor so it can be used together with other floor
5.With antistatic function, it can be used in data center
6.Customized as per the thickness of antistatic raised floor Size: 600*600*32/35/40mm.
Application

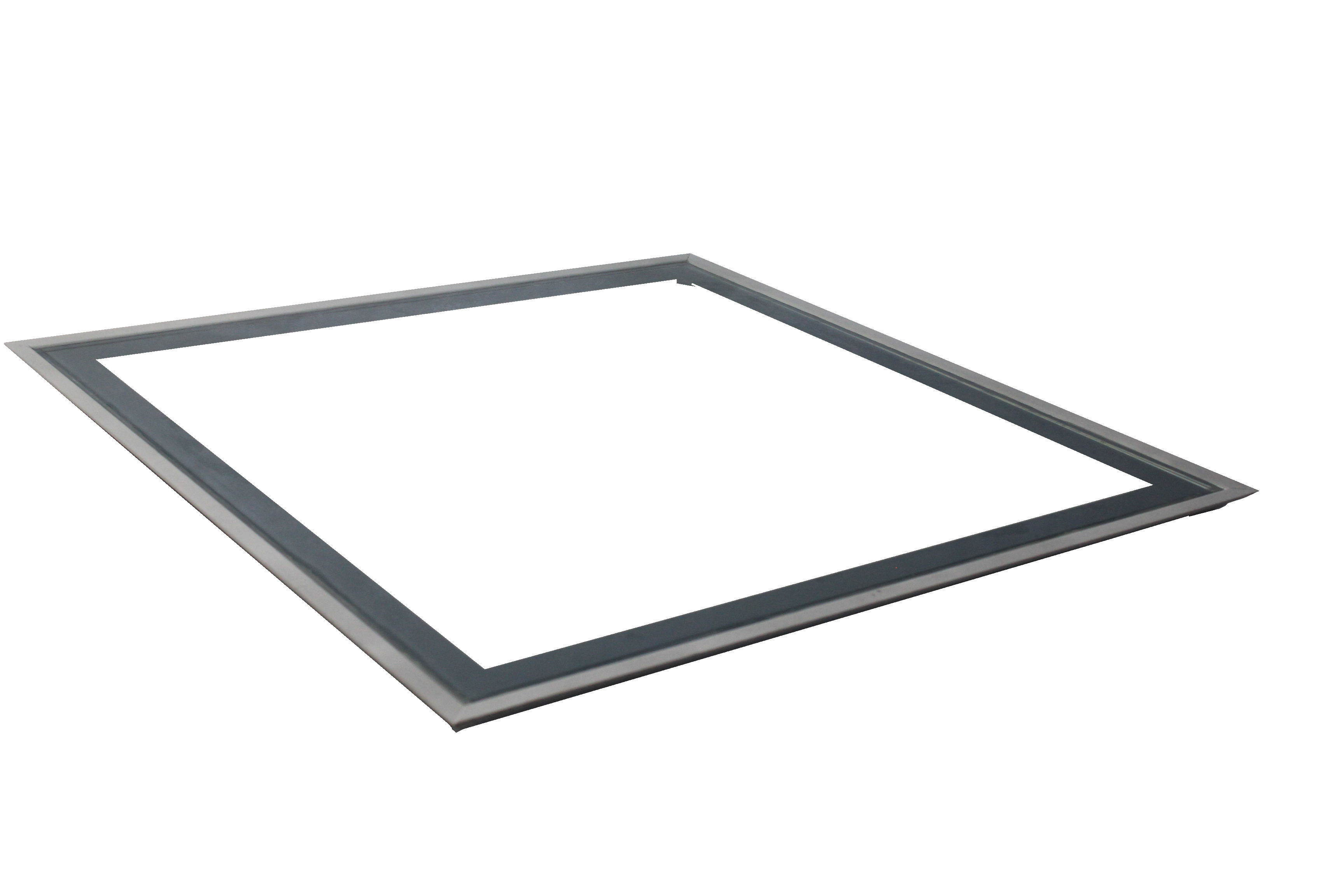

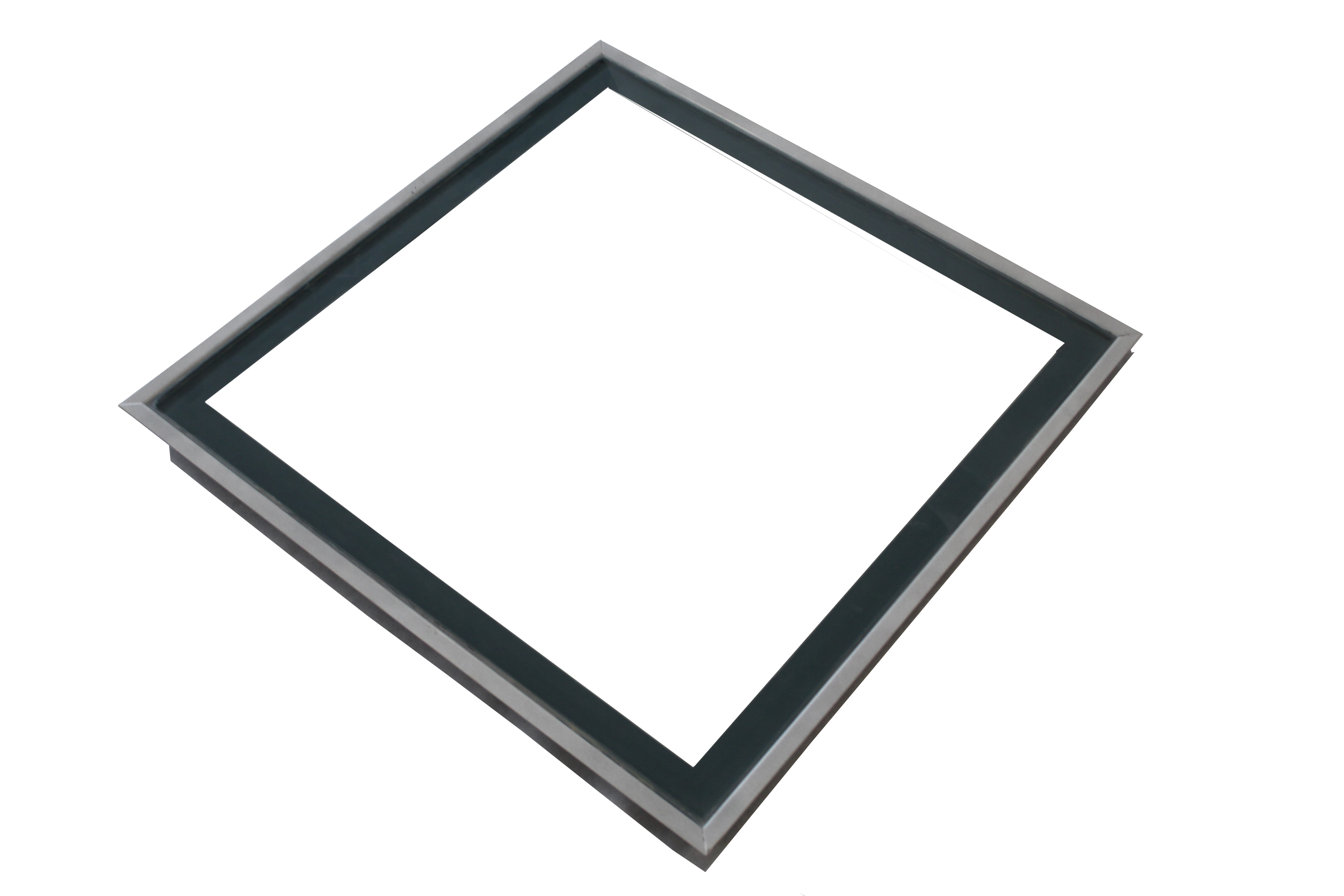

Glass Raised Access Floor is applicable for various computer room where has requirement to fashion, artistic and antistatic property. The panel is embraced by conductive aluminum frame, which brings great stereoscopic and artistic impression.
Technical Specification
|
Deflection |
Loading capacity |
Permanent deflection |
Size |
|
0.5mm |
70KG |
0.3mm |
600*600mm |
|
1.0mm |
140KG |
||
|
1.5mm |
200KG |
||
|
2.0mm |
270KG |
||
|
2.5mm |
350KG |
Use Scenarios
Use in Data Center Raised Flooring Infrastructure
In modern data centers, maintaining precise environmental controls and electrostatic discharge prevention is non-negotiable. The Glass Raised Access Floor fulfills these operational demands by supporting heavy server equipment loads while ensuring antistatic characteristics through the conductive aluminum framing. Its compatibility with standard raised floor sizes allows it to integrate smoothly into existing server room flooring systems, facilitating rapid installation and maintenance activities. This ensures continuous operational integrity, adherence to industry standards, and reduced risk of hardware failure attributable to electrostatic interference.
Application in Architecturally Sensitive Office Spaces
For office environments seeking to combine functional access flooring with refined aesthetics, the Glass Raised Access Floor offers a uniquely transparent panel that enhances ambient lighting and spatial perception. Integrating this access flooring into office data rooms or technical areas not only meets the technical requirements of raised floor solutions but also contributes to a visually open design. Its resistance to impact and pressure coupled with customizable thickness accommodates a variety of operational needs, blending engineering reliability with architectural design demands essential for high-performance office spaces.
FAQ
What materials are used in the Glass Raised Access Floor panels?
The panels feature toughened tempered glass combined with a conductive aluminum frame. This combination enhances strength, impact resistance, and adds antistatic properties, making the product suitable for sensitive environments like data centers. As reliable raised floor solutions, these materials ensure durability and safety.
Can the thickness of Glass Raised Access Floor panels be customized?
Yes, the panels come in three thickness options: 32 mm, 35 mm, and 40 mm. This flexibility allows customization to meet specific structural and antistatic requirements, making it compatible with various design needs in raised access floor manufacturers applications.
How is the Glass Raised Access Floor installed with existing raised floor systems?
The panels measure a standard 600 x 600 mm size, enabling seamless installation with other floor types in modular raised floor structures. Their compatibility ensures easy integration into existing access flooring setups without additional structural modifications.
What are the maintenance requirements for server room flooring made with this product?
Maintaining this server room raised floor involves routine cleaning to preserve glass transparency and antistatic performance. The durable toughened glass and conductive aluminum frame resist impact and pressure, minimizing wear and extending service life in demanding environments.
