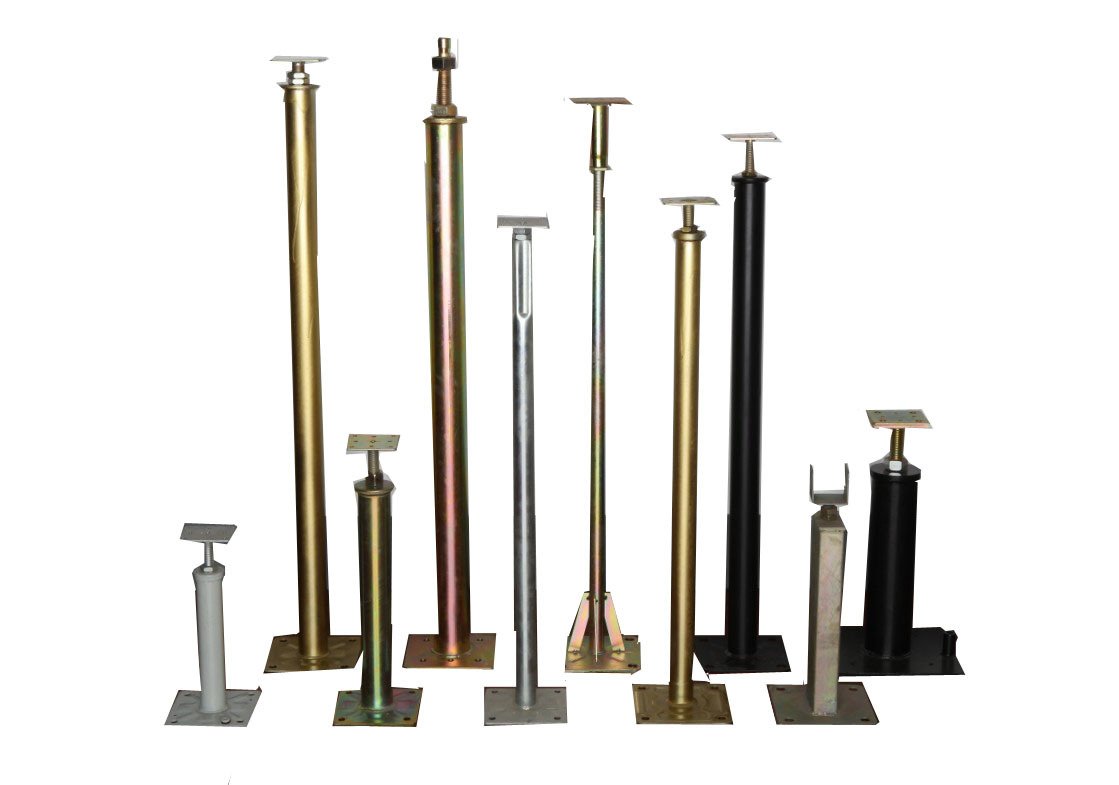

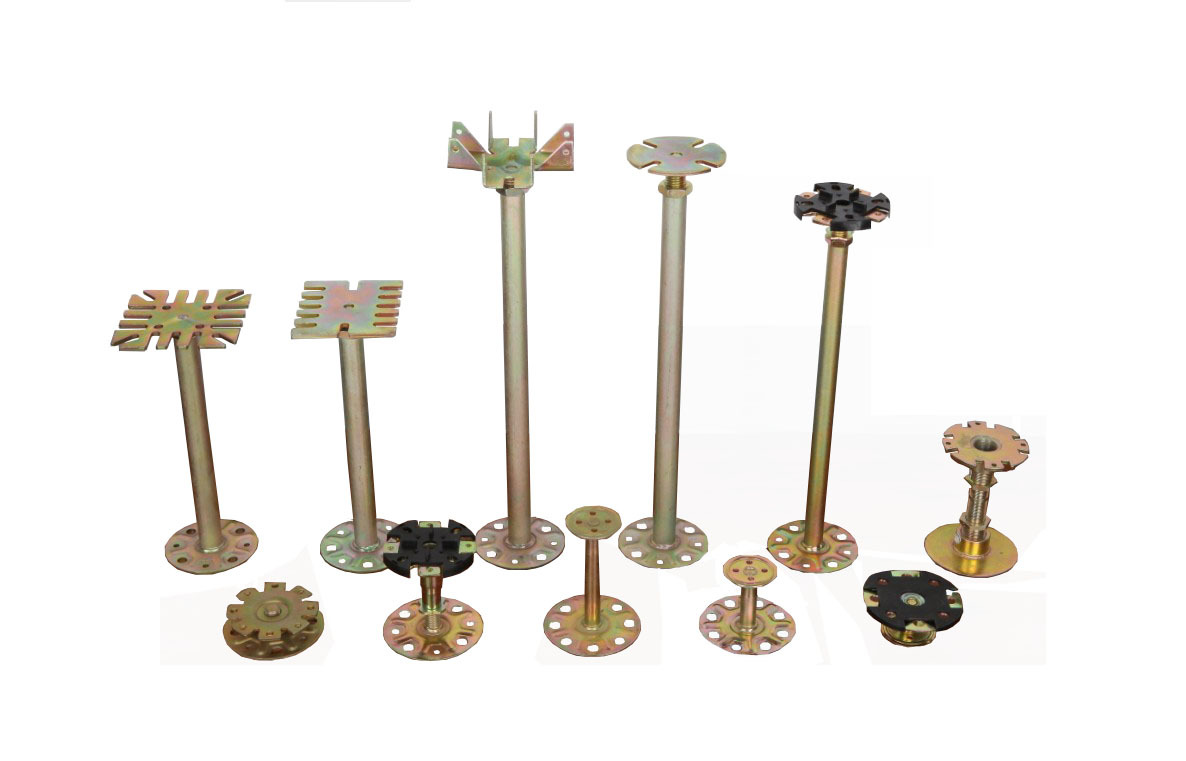

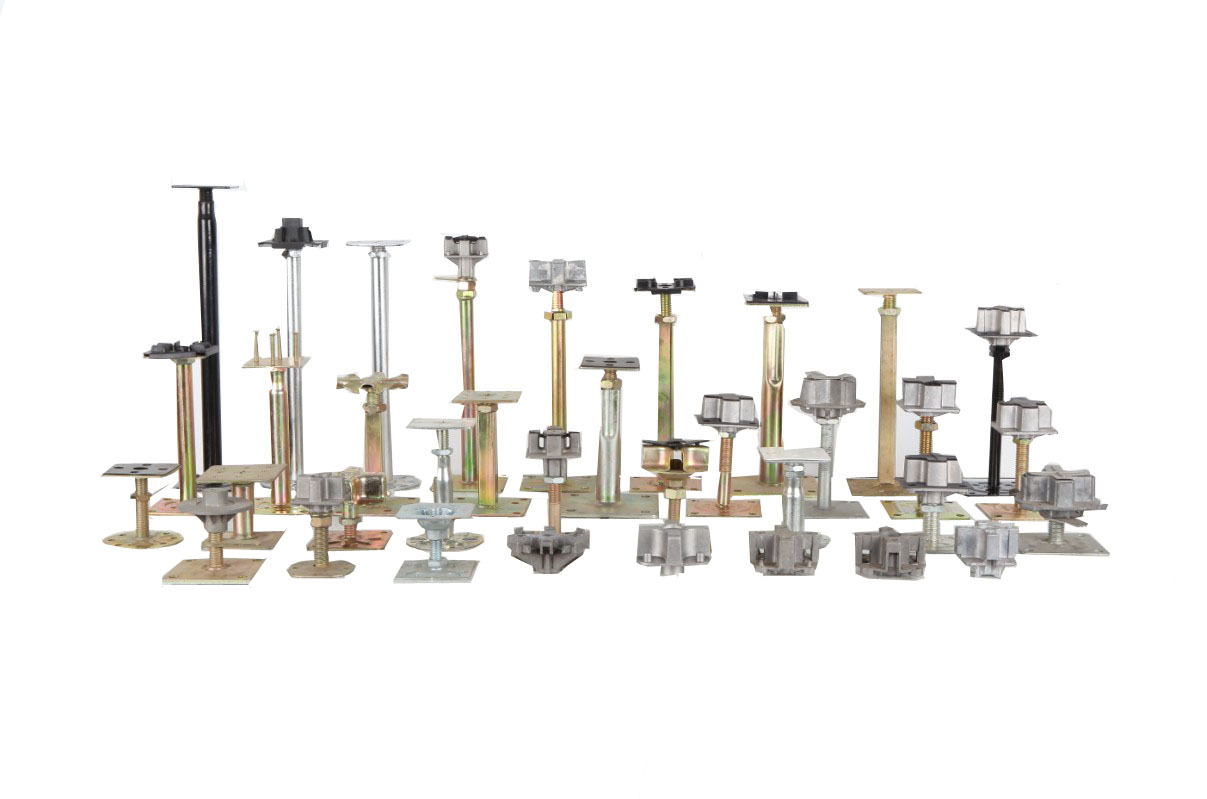

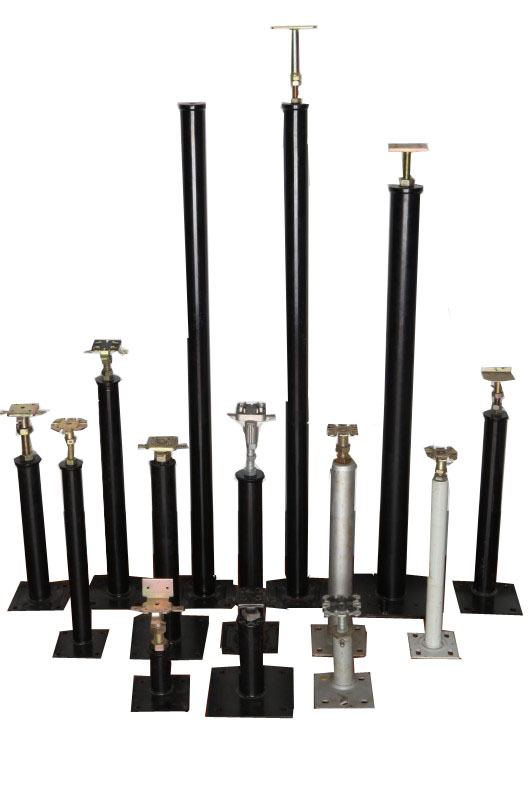

Available for various type of raised floor such as OA floor, steel raised floor, wood core raised floor, calcium sulphate raised floor, aluminum raised floor, etc.
Height available from 70-1500mm.
For OA panel
|
FFH (mm) |
Tube Diameter (mm) |
Adjustment + (mm) |
Adjustment - (mm) |
|
≤150 |
M18 |
10 |
20 |
|
150~250 |
M20 |
10 |
20 |
|
250~600 |
M25 |
25 |
25 |
|
600~800 |
M28 |
25 |
25 |
|
800~1000 |
M32 |
35 |
35 |
For tile finished panel
|
FFH (mm) |
Tube Diameter (mm) |
Adjustment + (mm) |
Adjustment - (mm) |
|
≤600 |
M25 |
25 |
25 |
|
600~800 |
M28 |
25 |
25 |
|
800~1000 |
M32 |
35 |
35 |
|
1000~1500 |
M45 |
35 |
35 |
Top plate size: 75*75, 83*83, M90; thickness: 3.0~5.0mm
Bottom plate size: 95*95mm, 100*100mm, 103*103mm, 125*125mm, 150*150mm; thickness: 2.0~5.0mm
SPEC can be customised.
